Description

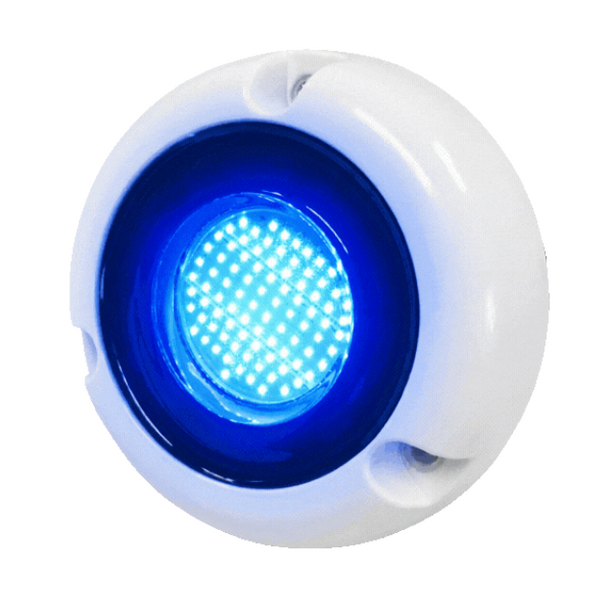

AQUAIDEA LED Underwater Light JB50WL - Blue
• Sealed watertight construction, ideal for underwater and trim tab lighting applications.
• Wide 100°–150° beam angle for enhanced underwater light coverage.
• High-efficiency COB LED design delivering consistent and bright light output.
• Low power consumption (~20W), ideal for marine battery systems.
• Sealed epoxy resin construction with aluminium alloy body and tempered glass lens.
• Protection Rating: IP68.
• Approx. 5m pre-wired cable.
• Installation hardware included.
• Mounting diagram included.
## Installation Kit##
Installation Kits Includes:
- JB50WL underwater light.
- Stainless steel mounting screws.
- Heat shrink connectors and tubing.
- 10A fuse and fuse holder.
- Drill hole position sticker.
## Installation Kit##
## Specifications##
| Specifications | |
| Part No. | 709574 |
| Height | 26mm |
| Diameter | Dia. 103mm |
| LED Colour | Blue |
| Frame Colour | White |
| Lumens | 4500lm |
| Volts | 9-32V |
| Power Consumption | 20W |
| Amps | 1.6A @12VDC / 0.8A @ 24VDC |
| LED Type | COBLED |
## Specifications##
