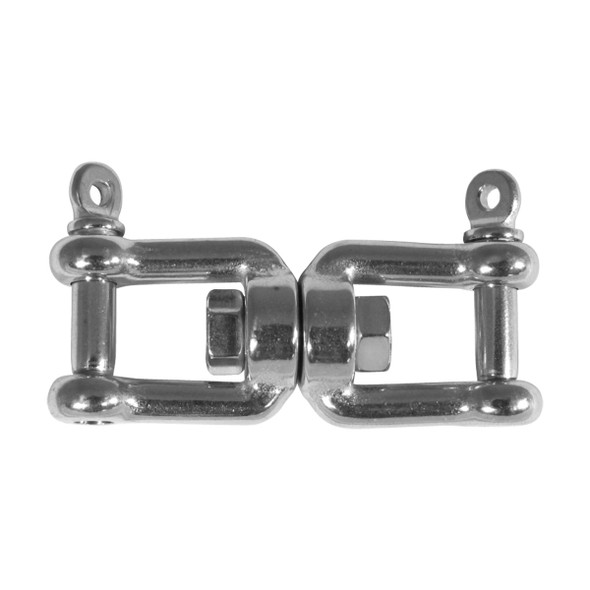

BLA Eye And Fork Swivels - Stainless Steel
Cast 316 grade stainless steel eye and fork swivels. Welded nut pivot bolt. Drilled jaw pin for security tie wire. Not SWL rated for lifting purposes.
|
BLA Code
|
A mm
|
B mm
|
C mm
|
D mm
|
Pin Dia.mm
|
Break Load kg
|
|---|---|---|---|---|---|---|
| 165474-BLA | 66 | 12 | 15 | 11 | 6 | 1200 |
| 165476-BLA | 88 | 16 | 20 | 16 | 8 | 1900 |
| 165478-BLA | 112 | 20 | 24 | 21 | 10 | 3500 |
| 165480-BLA | 146 | 26 | 33 | 26 | 12 | 5000 |
