Description

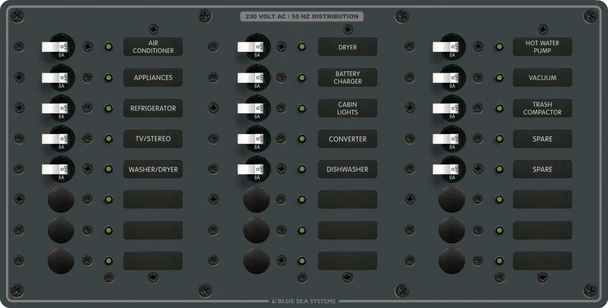

Blue Sea Circuit Breaker Panel AC Branch Traditional Metal 230V - 24 Positions
Distributes current from high amperage inputs into lower amperage circuits
- Maximum panel amperage - 100 Amperes
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
| Specifications | |
|---|---|
| Positions | 24 |
| Nominal Voltage | 230V AC |
| Maximum Amperage | 100A |
| Height | 7.50in (190.5 mm) |
| Width | 14.75in (374.65 mm) |
| Weight | 5.12lb (2.32 kg) |
| Weight | 5.12lb (2.32 kg) |
