Description

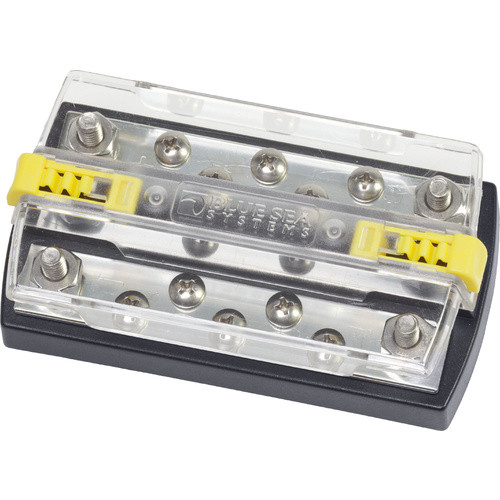

Blue Sea DualBus Plus 150A BusBar - 5/16"-18 Stud 5 Gang
- Combines negative and positive buses on one block
- Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements
##Specifications##
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 5 per bus |
| Number of Terminal Studs | 2 per bus |
| Terminal Type | #10-32 Screw 5/16" Stud |
| Continuous Rating | 130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Cover Material | Clear Polycarbonate |
| Mounting Screw | #10 (M5) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.61lb (0.28 kg) |
| Weight | 0.61lb (0.28 kg) |
ABYC limits the number of wires on a single terminal to 4, which can make it difficult to add more electrical loads like stereos, fish finders and GPS. Install an easy access point to add future electrical appliances by pairing a DualBus Plus and a 6006 m-Series ON/OFF Battery Switch.
The m-Series ON/OFF Battery Switch offers a method of disconnecting all loads from the battery for storage or in the event of a fire, while the Dual Circuit Plus will offer an insulated and compact termination point for both the positive and negative wires when installing additional appliances.
