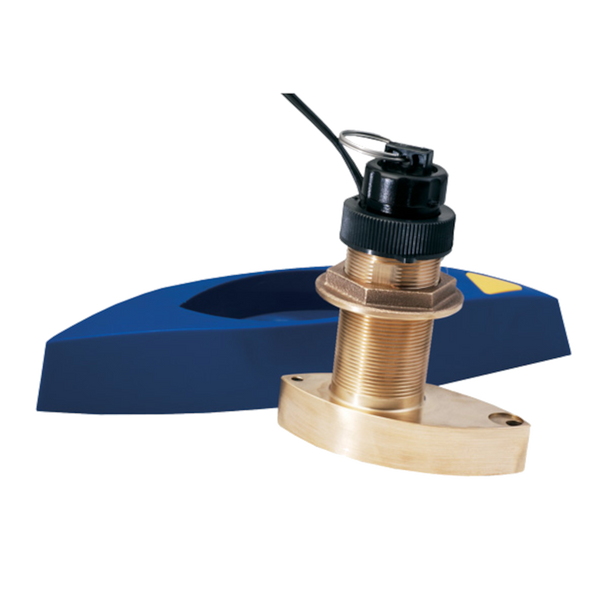

Airmar B744V Depth/Speed/Temperature Through Hull Transducer
600 W
The B744V is a TRIDUCER Multisensor featuring depth, speed, and temperature in a single housing. The 50/200 kHz, dual-frequency, single, ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz. The B744V is also available with a longer stem (B744VL) that may be needed for steep-deadrise vessels or thick cored-fiberglass or wood hulls. The required High-performance Fairing gives excellent results at speeds up to 30 knots (34 MPH).
Features
- Depth, speed, and fast-response water-temperature sensing in one housing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 366 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 213 m (700')
- Bronze housing with a High-performance Fairing for optimal bottom tracking at higher speeds
- Self-closing water valve reduces water flow into the hull when the paddlewheel insert is being replaced with the blanking plug
- Fins on sides of paddlewheel cavity improve accuracy in cross-flow conditions
- The extra-length housing (B744VL) allows mounting in thicker and/or high-deadrise hull
##Specifications##
Specifications
Power Rating: 600 W
Max Deadrise Angle: 24°
Housing: Bronze
Functions: Depth, Speed, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 9 m (30')
Hole Size: 51 mm (2")
Usable Shaft Length: 121 mm (4.75")
Acoustic Window: Urethane
Common Use: Leisure/Yachting, Fishing
Conventional Beam: 45°/12°
Max Deadrise: Up to 24° with fairing
Max Depth: Low frequency- 366 m (1200'), High frequency- 213 m (700')
Mounting Style: Thru-Hull with Fairing
Retractable housing: Yes
Single or Dual Frequency: Conventional Dual Frequency
Tilted Element: No
Weight: 2.5 kg (5.5 lb.)
