Description

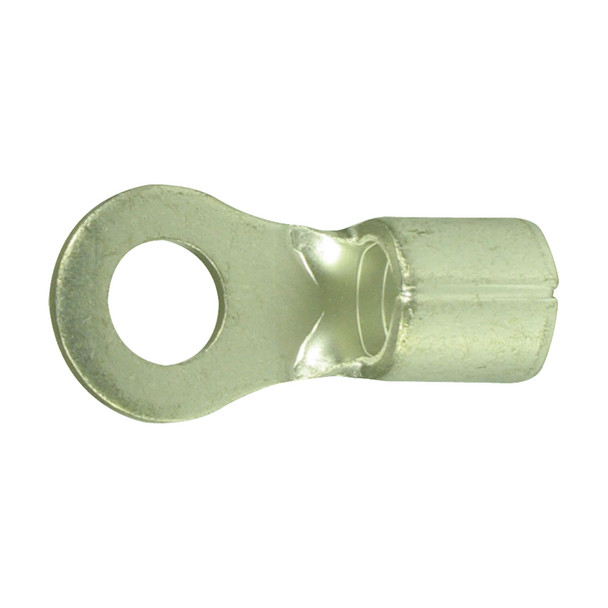

Crimp Battery Lugs
Fabricated in one piece from the finest electrical quality copper then electro-tinned for optimum electrical performance. Suited for most marine applications. Sold in bags of ten.
| Part Number |
Size
|
Stud Size mm
|
Cable size mm2
|
a mm
|
b mm
|
c mm
|
|---|---|---|---|---|---|---|
| 115202-BLA | 8-6 | 6 | 6.6-10.5 | 24 | 12 | 4.5 |
| 115204-BLA | 8-6 | 8 | 6.6-10.5 | 30 | 15 | 4.5 |
| 115206-BLA | 8-10 | 10 | 6.6-10.5 | 30 | 15 | 4.5 |
| 115208-BLA | 8-12 | 12 | 6.6-10.5 | 41 | 22 | 4.5 |
| 115212-BLA | 14-8 | 8 | 10.5-16.7 | 33 | 16 | 5.8 |
| 115214-BLA | 14-10 | 10 | 10.5-16.7 | 33 | 16 | 5.8 |
| 115220-BLA | 22-8 | 8 | 16.7-27 | 34 | 16 | 7.7 |
| 115222-BLA | 22-10 | 10 | 16.7-27 | 34 | 16 | 7.7 |
| 115228-BLA | 38-8 | 8 | 27-42 | 43 | 16 | 13.3 |
| 115230-BLA | 38-10 | 10 | 27-42 | 43 | 22 | 13.3 |
| 115232-BLA | 38-12 | 12 | 27-42 | 43 | 22 | 13.3 |
| 115236-BLA | 60-10 | 10 | 42-66 | 50 | 22 | 15.4 |
| 115238-BLA | 60-12 | 12 | 42-66 | 50 | 22 | 15.4 |
