Fusion

Fusion FM Series Marine Subwoofers, 10" 400W Square Flush-Mount Marine Subwoofer

(No reviews yet) Write a Review
SKU:
010-02301-10
UPC:
753759236724
Availability:
Usually Ships in 2-3 days
  • Fusion FM Series 10" Marine Subwoofers
  • Fusion FM Series 10" Marine Subwoofers
  • Fusion FM Series Marine Subwoofers, 10" 400W Square Flush-Mount Marine Subwoofer
  • Fusion FM Series Marine Subwoofers, 10" 400W Square Flush-Mount Marine Subwoofer
  • Fusion FM Series Marine Subwoofers, 10" 400W Square Flush-Mount Marine Subwoofer
  • Fusion FM Series Marine Subwoofers, 10" 400W Square Flush-Mount Marine Subwoofer
Frequently bought together:

Description

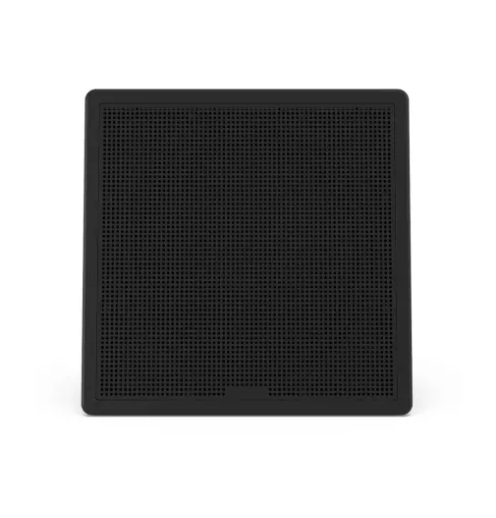

Fusion FM Series Marine Subwoofers, 10" 400W Square Flush-Mount Marine Subwoofer

CLEAR AUDIO, CLEAN AESTHETICS – ALL CLASS
The Fusion FM Series subwoofers are designed to enhance your on-water audio listening experience with quality bass, in a sleek and minimalistic aesthetic.

  • Innovative flush-mount design for a sleek and minimalistic finish
  • Low profile, near flat installation with a mounting profile of just 3 mm
  • Create a 2.1 audio zone to reduce system cost and simplify installation
  • With an increase in real power, the voice coil provides a high-quality sound experience
  • The subwoofers are available in 10-inch designs with a round or square form factor
  • Engineered to last season after season, the subwoofers include a 3-year warranty

DESIGNED AND ENGINEERED TO TRUE-MARINE STANDARDS
Built on the True-Marine design philosophy from Fusion, the FM Series subwoofers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.

DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the FM Series subwoofers are designed and built for superior quality and robustness.

VERSATILE SYSTEM INTEGRATION
Built for system versatility and ease of integration, you can connect your FM Series subwoofer directly to a 2.1 audio zone compatible system such as the Apollo™ Series without the need for an external amplifier – reducing system cost and simplifying installation.

INJECTION-MOULDED POLYPROPYLENE CONE
By using a water-resistant IMPP cone, we are able to produce defined, high-resolution low-frequencies from the excellent self-damping and bass reproduction.

LARGE DIAMETER VOICE COIL
With an increase in real power and efficiency, the large diameter voice coil delivers a truly high-quality sound experience.

HIGH-QUALITY BASKET CONSTRUCTION
The basket is constructed using high-quality engineered plastics to deliver enhanced durability when exposed to the marine environment.

INNOVATIVE FLUSH-MOUNT DESIGN
The FM Series subwoofers are designed to be flush-mounted with a mounting profile no thicker than 3 mm for a visually appealing, near flat finish. The sleek and minimalistic aesthetic allows the FM Series subwoofers to blend in seamlessly with your boat.

NON-INTRUSIVE MOUNTING SYSTEM
The FM Series subwoofers feature an intelligent mounting system. Simply place the subwoofer into the cut-out, tighten the screws and the subwoofer legs will tighten against the panel, keeping it in place without needing to create any screw holes in your boat.

010-02301-10 010-02301-11
10" 400-Watt Square White Flush-Mount Marine Subwoofer 10" 400-Watt Square Black Flush-Mount Marine Subwoofer

##Features##

Features

  • 10 inch cone for serious punch
  • Flush mount kit keeps things neat
  • IP65-rated gear for Aussie conditions
  • Built tough plastics handle vibration
  • Works neatly with Fusion Apollo gear
  • Smart buy for long-term marine audio

##Features##

##Specifications##

Specifications

  • Size: 10" square form factor
  • Continuous power handling (RMS): 120 W
  • Sensitivity (SPL @ 1 W/1 m): 87 dB
  • Frequency response (+/- 3 dB): 30 Hz to 2 kHz
  • Nominal impedance: 4 Ω
  • Physical diameter: 284 mm
  • Physical depth: 139.5 mm
  • Mounting diameter clearance: 269 mm
  • Mounting depth clearance: 140 mm
  • Frontal grille protrusion: 3 mm
  • Weight (10" Square Black): 3.1 kg (6.83 lbs)
  • Water and dust rating: IP65
  • Operating temperature range: 0° to 50° C (32° to 122° F)
  • Cone material: water-resistant polypropylene cone with rubber surround
  • Basket construction: engineered plastics
  • Compass safe distance: 381 cm (150")
  • Speaker connections: spade connectors
  • Speaker type: subwoofer
  • Warranty: 3 years

In the Box

  • One 10" Fusion FM Series square black flush-mount marine subwoofer
  • Documentation

##Specifications##
