Description

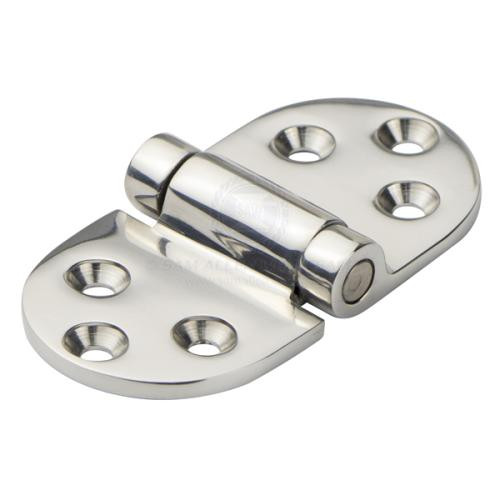

Hinge Friction / Torque Mount
• Cast 316G stainless steel.
• Available in two styles - surface mount with protruding hinge pin or with the hinge pin recessed to mount flat with the deck.
• Constant torque - 30kgf+/-15%.
• Solid stainless steel pin.
• 12mm barrel height.
• Holds light hatch or cover in place.
## Specifications##
| Specifications Chart |
||
| Part No. | 38620-SAM | 38622-SAM |
| Length | 38mm | 38mm |
| Width | 76mm | 76mm |
| Type | Surface Mount | Recessed Mount |
| Split | 38mm / 38mm | 38mm / 38mm |
| Leaf Thickness | 3mm | 3mm |
| No. Mount Holes | 6 | 6 |
| Mount Screws | 4mm c/s | 4mm c/s |
| Note | Sold individually. | Sold individually. |
