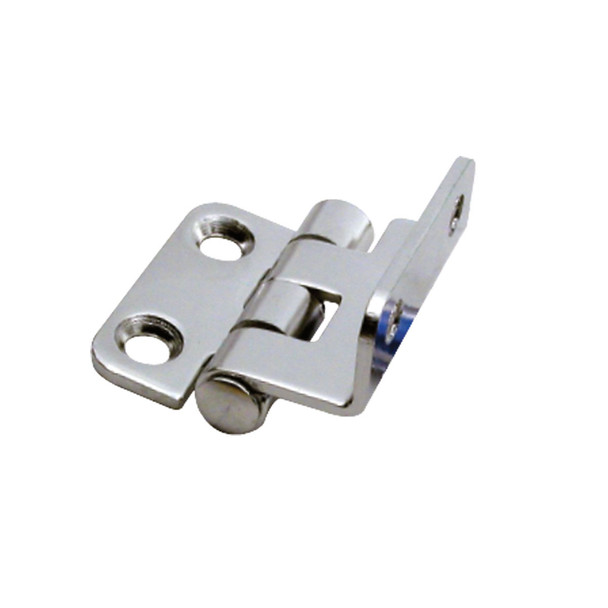

Hinges - Medium Duty Pressed Stainless Steel

Medium duty pressed stainless steel hinges. Plate thickness is 2mm and the hinge barrel is rolled. Pressed end, solid stainless steel pivot pin. Sold as a pair.

BLA Code	Length Flat mm	Width mm	Depth mm	Split mm	Mount Screws mm	Off Set mm
193536-BLA	36mm	41mm	20mm	18/18	4 c/s mm	10
193540-BLA	66mm	41mm	20mm	18/48	4 c/s mm	10
193542-BLA	75mm	41mm	30mm	23/52	4 c/s mm	20
193552-BLA	56mm	41mm	10mm	18/38	4 c/s mm	-
193554-BLA	86mm	41mm	10mm	38/48	4 c/s mm	-
193556-BLA	76mm	41mm	10mm	38/38	4 c/s mm	-
193572-BLA	126mm	41mm	10mm	37/89	4 c/s mm	-
193574-BLA	178mm	41mm	10mm	89/89	4 c/s mm	-
193576-BLA	74mm	41mm	10mm	37/37	4 c/s mm	-
193578-BLA	107mm	38mm	7mm	41/66	4 c/s mm
