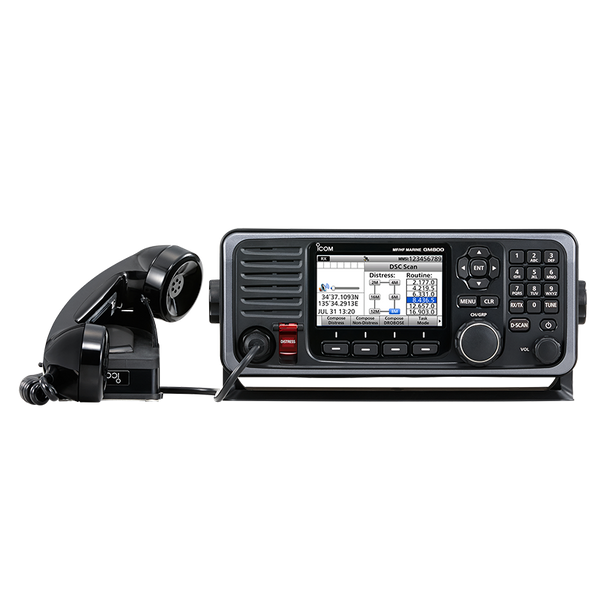

ICOM GM800 - GMDSS MF/HF Transceiver With Class A DSC
Reliable Performance for MF/HF Long Distance Communication
- Satisfies the SOLAS carriage requirements for a MF/HF Class A DSC radio
- Meets MED “Wheel Mark” Requirements
- Meets ITU-R M.493-13 DSC
- Large and High Contract 4.3 inch colour TFT LCD with Day and Night Mode
- New Intuitive User Interface for Straightforward operation
- Provides Loud, Clear Audio
- IPX& Waterproof Construction (Controller Only)
- 125W1 (PEP) output power
- Built-in 24V DC-DC converter
- 57mm diameter front speaker
- IEC 61162-1 for GPS connection
Other Features
- Remote Distress alarm
- Printer connector (Centronics IEEE1284)
- IEC 61162-1 interface for GNSS receiver
- Output power: 150 W* PEP into 50 Ω(at radio terminal, GM800)
- Built-in 24 V DC-DC converter
Supplied Accessories
- HS-98 handset
- Mounting bracket kit
##Specifications##
| Specification | ||
|---|---|---|
| Frequency range (Unit: MHz) | TX | 1.6–27.5000 (ITU marine channels) |
| RX | 0.5–29.9999 (continuously) | |
| DSC | 2.1875, 4.2075, 6.3120, 8.4145, 12.5770, 16.8045 |
|
| Type of emission | TX/RX | J3E (USB/LSB*), H3E* (AM), J2B* (AFSK), F1B (FSK), A1A* (CW) * Receive only. |
| DSC | F1B | |
| Power supply requirement | 24 V DC (21.6–31.2 V) (floating ground) | |
| Dimensions (projection not included; W×H×D) | Main unit | 367 × 95 × 260 mm |
| Controller | 274 × 114 × 86 mm | |
| Weight (approximately) | Main unit | 8.6 kg |
| Controller | 760 g | |
| RF output power | 150W PEP into 50 Ω (at radio terminal) 125W (4.0–27.5 MHz) (at tuner-output) 85W (1.6–3.999 MHz) (at tuner-output) |
|
| Current drain | Transmit (Max. power) |
Less than 20 A (at 1.1 kHz and 1.7 kHz two tones) |
| Receive (Max. audio) |
Less than 3.0 A | |
| Sensitivity | J3E, A1A (20 dB SINAD) |
30 dBμV emf (0.5–1.599 MHz) 16 dBμV emf (1.6–3.999 MHz) 11 dBμV emf (4.0–29.999 MHz) |
| J2B, F1B (1% error rate) |
3 dBμV emf (1.6–2.099 MHz) 0 dBμV emf (2.1–27.500 MHz) |
|
| H3E (20 dB SINAD) |
44 dBμV emf (0.5–1.599 MHz) 30 dBμV emf (1.6–3.999 MHz) |
|
| DSC (J2B) (1% error rate) |
0 dBμV emf | |
| Audio output power | External SP | 4 W with 4 Ω load |
| Internal SP | 2 W with 8 Ω load | |
| IEC 61162-1 in/out format |
Input | GGA, GNS, GLL, RMC, FSI |
| Output | FSI, DSC, DSE | |
Measurements made in accordance with EN300 373-1 for GM800.
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| Water (GM800 controller unit) | IPX7 (1 m depth water for 30 minutes) |
##Specifications##
