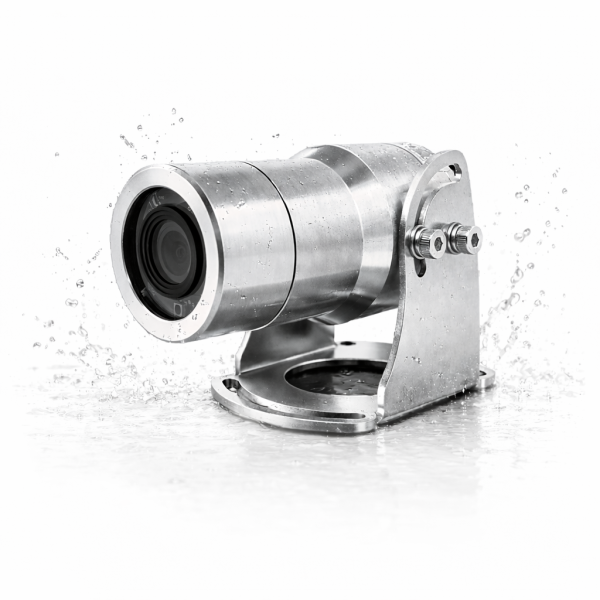

IRIS 090 4in1 Bullet Camera Wide Angle Stainless Steel 20 HFOV 2.8mm

Introducing the IRIS090-4in1: A Compact, Ultra-Rugged Bullet Camera, engineered for Marine and Vehicle Surveillance

Precision-engineered. Exceptionally durable. Uncompromisingly versatile.

Crafted from marine-grade 316L stainless steel, the IRIS090-4in1 delivers outstanding resistance to corrosion, vibration, impact, and extreme weather conditions—making it the ultimate surveillance solution for both marine and vehicle applications.

The cameras compact and rugged form factor is discreet, yet incredibly tough, allowing for mounting in confined or exposed positions, and with an IP68 environmental rating, the camera is fully protected from dust and water ingress at depths of up to 30 meters making it ideal for RIBS, workboats, emergency vessels and vehicles and off-shire vessels.

The IRIS090-4in1 supports four analogue video formats. Standard definition CVBS (composite video) for legacy systems, and three analogue hi-def formats (AHD, HD-TVA and HD-CVI). The high definition formats offer up to 5MP HD resolution in real time.

Standard Format CVBS video is supported by all chart-plotters with analogue video inputs and high defintiion formats are directly compatible with chart-plotters with analogue-HD compatible inputs, such as Garmin’s 9000 series chart-plotters (max resolution 2MP).

Built in Infra Red LED illuminators facilitate visibility up to 15 meters at night or in low light.

Installation is simple, with video transmitted over conventional 75Ω coaxial cable such as RG59, RG6 or URM70 which means the camera can be used to upgrade existing cameras without the need to run new cable. In addition, the camera draws less than 200mA (with LED’s ON).

## Features##

Features

• Exceptional mechanical strength
• Machined from Marine Grade 316 Stainless Steel
• Multi-Format Compatibility/li>
• Standard Defintion (CVBS) and 3 x HD Formats (TVI, CVI, AHD)
• Built in Infra Red Illumination (15m Range)
• Plug-In in-line Joystick for OSD Configuration and Set Up
• 12VDC Power Input ±10%
• Compatible with all MFD’s with Composite Video Inputs
• AHD Formats Compatible with MFD’s supporting Analogue Hi-Def
• Extremely Low Power Consumption – Less than 350mA IR ON
• IP68 Environmental Protection/li>
