Description

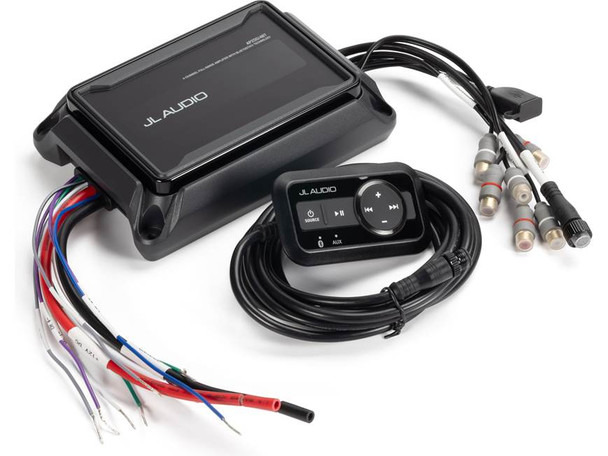

JL Audio AP 4 Channel Amplifier With Bluetooth & Remote AP200/4BT

Important Note: Not compatible with the Fusion Audio App

Take your audio system to the next level with the JL Audio AP 4 Channel Compact Marine Amplifier with Bluetooth. Combining powerful multi-channel amplification with built-in wireless streaming, this all-in-one solution is perfect for boats, jet skis, and off-road vehicles.

Featuring integrated Bluetooth audio streaming, this amplifier eliminates the need for a separate head unit, allowing you to connect your smartphone directly for seamless music playback. The included wired remote control provides convenient operation, whether flush-mounted or surface-mounted.

Engineered for durability, the amplifier is IP67-rated (excluding cables) and built to withstand extreme marine conditions, while the included remote is IPX7-rated for added protection.

Key Features:

4-channel Class-D amplifier with high-efficiency output
Built-in Bluetooth audio streaming (no head unit required)
Includes wired remote control (flush, surface or bar mount)
Class D amplifier design
Compact, space-saving design
IP67-rated amplifier for marine durability
Up to 50W x 4 RMS (2 Ohm)
Bridgeable for increased output flexibility
Wide frequency response (20Hz – 20kHz) for full-range sound

Perfect For:

Marine and boating setups
Jet skis and powersports
Compact audio systems
Wireless audio streaming setups

## Specifications##

JL Audio AP 4 channel amplifier with Bluetooth technology, remote controller, surface mounting cup with 4 mounting screws, 4 amplifier mounting screws, flush mounting kits, flush mounting template for the remote controller, waterproof gasket for the remote controller and documentation

Category	Specification	AP200/4BT
General	Channels	4
	Physical dimensions (HxWxD)	1.85" × 7.28" × 4.90" (47 × 185 × 125 mm)
	Water & dust rating	IP67 (Remote: IP67)
	Operating temperature	−20°C to 65°C (−4°F to 149°F)
	Warranty	3 years
	Operating voltage	9–16 VDC
Audio	Amplifier class	Class D
	Rated RMS power @ 4Ω	40 W × 4 / 100 W × 2 (bridged)
	Rated RMS power @ 2Ω	50 W × 4
	THD+N @ rated power	<1% @ 4Ω per channel
	Frequency response	20 Hz – 20 kHz
	Input voltage range (RCA, switchable)	200 mV–2 VRMS (low)800 mV–8 VRMS (high)
	Input impedance	11kΩ (high level)20kΩ (low level)
	Current consumption (standby)	<1 mA
	Current consumption (idle)	700–750 mA
	Fuse rating	35 A
	Protection circuits	Input under/over voltageOver temperatureOutput short circuit
Signal Processing	HP variable crossover	–
	LP variable crossover	–
	Bass boost	Yes

## Specifications##

##In the Box##

In the Box

4-Channel marine amplifier with attached 8" input harness and 10" power/ground/output harness
Wired remote control with attached 9.5' cable
Surface-mount frame
Mounting bracket
Two 1-3/4" threaded posts with attached flange-nuts and lock washers
Four 1/2" Philips-head screws
Four 1-3/8" Philips-head screws
2 Adhesive foam mounting pads
Owner's manual
Product & Safety information
JL Audio AP200/4BT owner's manual
