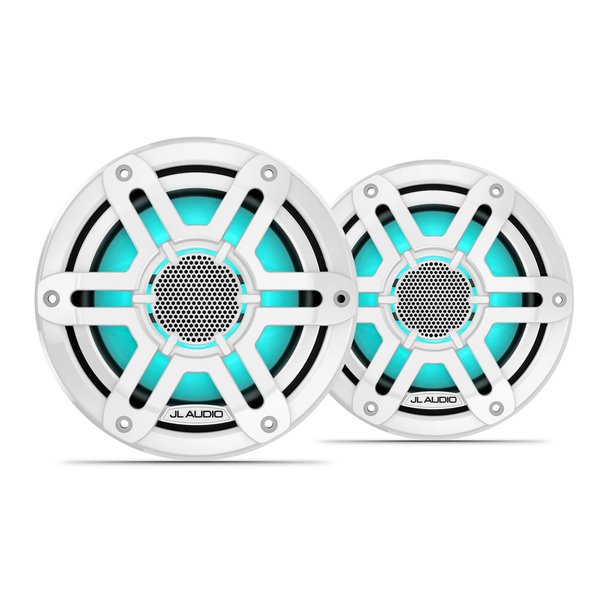

JL Audio M200 7.7" Sports LED Marine Speakers
The JLAudio M200 marine speakers and subwoofers bring M-series audio to your boat for less, taking your onboard experience to the next level with high-quality sound. The 50- to 60-watt RMS speakers deliver loud, clean sound with less distortion while the 250-watt RMS subwoofer delivers powerful and deep bass.
Optional RGB LED lighting enhances your audio experience with a wide spectrum of colours and you can match the look of your vessel with interchangeable grilles with white or gray colour options (each sold separately).
Built from marine grade materials and finishes with corrosion-resistant connections and circuit boards to withstand salt and sun, choose from 6.5" or 7.7" speakers and 10" subwoofers.
Features
INCREDIBLE PERFORMANCE
The coaxial marine speakers deliver loud, clean sound with less distortion and 50- to 60-watt RMS power handling. The subwoofers deliver powerful and deep bass with 250-watt RMS power handling and a long-excursion design.
SILK DOME TWEETER
A bridge-mounted 1" edge-driven silk dome tweeter with neodymium magnet and ferrofluid cooling delivers a smoother and warmer sound for all your cruises.
RGB LED LIGHTING
Enhance your audio experience with a wide spectrum of colours. Pair with the Garmin Spectra control module (sold separately) for advanced lighting control from your compatible chartplotter or the ActiveCaptain® app
CUSTOMISABLE GRILLE OPTIONS
Match the look of your vessel with white or gray colour options along with interchangeable grilles (sold separately).
SALT AND SUN PROTECTED
Sail to your heart’s content knowing that your speakers and subwoofers are built from marine-grade materials and finishes with corrosion-resistant connections and circuit
boards to withstand salt and sun.
## In The Box##
In The Box
A pair of 7.7" LED speakers with grilles, two water-resistant 6-pin connectors, mounting screws and documentation.
## In The Box##
## Specifications##
General |
|
| Warranty | 3 years |
|---|---|
| Sizes | 6.5″/7.7″ |
| Colour | White Sport or Gray Sport |
| Physical dimensions (Diameter) | 6.5″: 175 mm (6.90″) 7.7″: 196 mm (7.70″) |
| Physical dimensions (Depth) | 6.5″: 106 mm (4.19″) 7.7″: 117 mm (4.60″) |
| Water and dust rating | IPX6 |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5″: 50 W 7.7″: 60 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5″: 87 dB 7.7″: 88 dB |
| Frequency response (+/- 3 dB) | 6.5″: 55 Hz - 20 KHz 7.7″: 45 Hz - 20 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5″: 30 - 100 W/Channel 7.7″: 40 - 120 W/Channel |
| LED lighting | Yes (RGB; select Sport models only) |
| LED supply voltage | 10 - 14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 140 mA (Select sport models only) |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk dome |
| Tweeter size | 25 mm (1″) |
Electrical features |
|
| Compass safe distance | 6.5″: 185 mm (73″) 7.7″: 205 cm (81″) |
|---|---|
Networking & Connections |
|
| Speaker connections | Spade Connectors Flying Lead with waterproof connector 18 AWG Wire (Selected sport models only) |
|---|---|
| LED connection | Flying lead with waterproof connector, 4-conductor 20 AWG wire (selected Sport models only) |
Mounting Dimensions |
|
| Mounting depth clearance | 6.5″: 72 mm (2.83″) 7.7″: 78 mm (3.07″) |
|---|---|
| Frontal grille protrusion | 6.5″: 33 mm (1.30″) 7.7″: 35 mm (1.38″) |
| Mounting hole | 6.5″: 127 - 133 mm (5″ - 5.25″) 7.7″: 159 mm (6.25″) |
| Bolt hole circle | 6.5″: 156 mm (6.14″) 7.7″: 176 mm (6.92″) |
