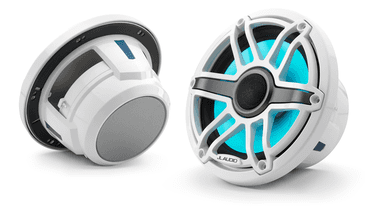

JL Audio M6 Marine Speakers 7.7" With Transflective LED, Gloss White Sports Grille - M6-770X
(M6-770X-S-GwGw-i): M6 196 mm (7. 7-inch) Marine Coaxial Speakers with Transflective LED Lighting (100 W, 4 Ω) - Gloss White Trim Ring, Gloss White Sport Grille
Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment, with the added visual impact of JL Audio’s Transflective RGB LED lighting.
The oversized 196 mm (7. 7-inch) design of the M6-770X coaxial results in increased efficiency (more output for a given amount of power).
Combine that advantage with long excursion and excellent power handling and you have a speaker system truly capable of playing loud and clear in a powerboat at speed. The woofer element is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l).
Operating this coaxial system in less space will compromise its low frequency performance. A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels.
A true 2-way passive crossover network is built into the terminal assembly to protect it from vibration and corrosion. Although M6-770X Coaxial Systems can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 40-200 W of continuous power per channel.
The patent-pending Transflective™ RGB LED technology emits a smooth lighting effect through the woofer cone, with a choice of several lighting colours. Add an optional RGB controller to create thousands of colour variations.
Features
- 7.7" 2-way marine speakers with RGB LED lighting (pair)
- Injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
- Transflective cone emits even glow when lit, appears silver with lighting off
- 1" silk dome tweeter
- 2-way crossover attached to the woofer basket
- UV- and corrosion-resistant polymer baskets and grille
- designed for free-air applications (no enclosures needed)
- for best performance, speaker needs at least 2 cubic feet of airspace
- Power handling: 100 watts RMS (200 watts peak power)
- Impedance: 4 ohms
- Frequency response: 45-25,000 Hz
- Sensitivity: 91 dB
- Cutout diameter: 6.188
- Frame diameter: 7.712
- Mounting depth: 3.38
##Specifications##
Specifications
| Sizes | 6.5"/7.7"/8.8" |
|---|---|
| Colour | White Classic, White Sport or Titanium Sport or Luxe Satin Black or Luxe Satin White |
| Physical dimensions (Diameter) | 6.5" (Classic/Sport): 175 mm (6.90") 6.5" (Luxe): 212 mm (8.34") 7.7" (Classic/Sport): 196 mm (7.70") 7.7" (Luxe): 232 mm (9.13") 8.8" (Classic/Sport): 224 mm (8.80") 8.8" (Luxe): 260 mm (10.25") |
| Physical dimensions (Depth) | 6.5" (Classic): 100 mm (3.94") 6.5" (Sport): 102 mm (4.02") 6.5" (Luxe): 102 mm (4.02") 7.7" (Classic): 110 mm (4.35") 7.7" (Sport): 112 mm (4.4") 7.7" (Luxe): 112 mm (4.4") 8.8" (Classic): 162 mm (6.37") 8.8" (Sport): 164 mm (6.45") |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 75 W 7.7": 100 W 8.8": 125 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 89.5 dB 7.7": 91 dB 8.8": 90.5 dB |
| Frequency response (+/- 3 dB) | 6.5": 55 Hz-25 kHz 7.7": 45 Hz-25 kHz 8.8": 38 Hz-20 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5": 25-150 W/Channel 7.7": 40-200 W/Channel 8.8": 50-250 W/Channel |
| LED lighting | Yes - Transflective™ (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 6.5"/7.7": 324 mA 8.8": 486 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk dome |
| Tweeter size | 6.5": 20 mm (0.8") 7.7": 25 mm (1") 8.8": 32 mm (1.25") |
Networking & Connections |
|
| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only) |
Mounting Dimensions |
|
| Mounting depth clearance | 6.5" (Classic/Sport): 76 mm (3") 6.5" (Luxe): 98 mm (3.87") 7.7" (Classic/Sport): 84 mm (3.32") 7.7" (Luxe): 108 mm (4.26") 8.8" (Classic/Sport): 127 mm (5") 8.8" (Luxe): 160 mm (6.30") |
|---|---|
| Frontal grille protrusion | 6.5": 24 mm (0.94") 6.5" (Sport): 26 mm (1.02") 6.5" (Luxe): 9 mm (0.37") 7.7": 26 mm (1.03") 7.7" (Sport): 27 mm (1.08") 7.7" (Luxe): 10 mm (0.38") 7.7" (Sport): 27 mm (1.08") 7.7" (Luxe): 10 mm (0.38") 8.8": 35 mm (1.37") 8.8" (Sport): 37 mm (1.45") 8.8" (Luxe): 12 mm (0.48") |
| Mounting hole | 6.5" (Classic/Sport): 127-133 mm (5"-5.25") 6.5" (Luxe): 172 mm (6.75") 7.7" (Classic/Sport): 159 mm (6.25") 7.7" (Luxe): 191 mm (7.50") 8.8" (Classic/Sport): 187 mm (7.375") 8.8" (Luxe): 219 mm (8.625") |
| Bolt hole circle | 6.5" (Classic/Sport): 156 mm (6.13") 6.5" (Luxe): 188 mm (7.39") 7.7" (Classic/Sport): 176 mm (6.92") 7.7" (Luxe): 208 mm (8.18") 8.8" (Classic/Sport): 202 mm (7.97") 8.8" (Luxe): 235 mm (9.27") |
Additional |
|
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 19 mm (0.75″) thick material. If you are using 16 mm (0.625″) thick material, subtract 6.5 mm (0.25″) from each dimension. Do not use any material with a thickness of less than 16 mm (0.625″) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorised JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
|---|---|
##Specifications##
##In the Box##
- Two marine coaxial loudspeakers*
- Two grilles*
- Twelve stainless steel mounting screws*
- Twelve stainless steel screws washers*
- Grille removal tool (Luxe models only)
- Mounting template
*Single speaker models contain half of the contents listed
