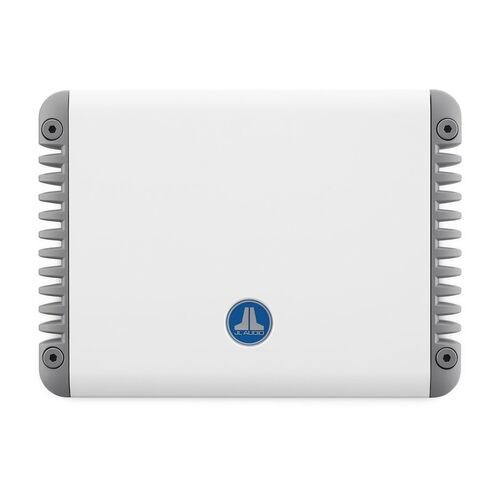

JL Audio MHD Marine Amplifier - 5 Channel Full-Range Marine System Amplifier 900 W
Combining our Single Cycle Control and R.I.P.S. power supply technologies, MHD amplifiers deliver world-class, full-range fidelity and high-power output from an incredibly small package.
HIGH-FIDELITY CLASS-D DESIGN DELIVERS SUPERB SONICS
INTELLIGENTLY OPTIMISED FOR ALL THE POWER — ALL THE TIME
FULL SUITE OF STUDIO-GRADE SIGNAL PROCESSING ON BOARD
UNIQUE DESIGN ADJUSTS OPERATION TO AVOID THERMAL EVENTS
EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE
2-YEAR WARRANTY
SINGLE CYCLE CONTROL
Ground breaking technology applies output correction more than 400,000 times per second to deliver exceptional audio quality with reduced current draw and heat.
R.I.P.S. TECHNOLOGY
Regulated, Intelligent Power Supply is a tightly controlled design that maintains full power output from 1.5 to 4 ohms per channel and at any supply voltage from 11 to 14.5 volts.
STUDIO-GRADE SIGNAL PROCESSING
Selectable 12 dB/octave (Butterworth) or steep 24 dB/octave (Linkwitz-Riley) filters with calibrated potentiometer to best integrate with subwoofers and component systems.
DIFFERENTIAL-BALANCED INPUTS
A versatile design accepts speaker level signals without a line-output converter; it also delivers outstanding noise rejection while preventing alternator whine and other noises.
ADVANCED ROLLBACK PROTECTION
Innovative circuit design ensures that the amplifier will never shut down as a result of thermal overload and keeps the music playing, even under the most demanding conditions.
BUILT FOR THE ELEMENTS
An all-aluminium, powder-coated housing with marine-grade hardware inhibits corrosion, and a watertight security cover protects all controls from the harshest of seasons.
FUNCTIONAL HIGH-FIDELITY
POWERFULLY NEAT
All MHD models share the same compact dimensions, making them far easier to place.
REALSINK CHASSIS
The heat sink design requires no fans and permits stacking without losing cooling ability.
DESIGNED TO FIT
Removable power and speaker plugs aid installations in tight spaces.
##Features##
Features
- 900 watt, five-channel marine amp kit
- Class D layout for efficient power draw
- Compact 273 x 199 x 49 mm chassis
- Aluminium, powder-coated housing for salt
- RealSink fanless cooling for quiet trips
- Dial-in filters from 50 to 500 hertz
##Features##
##Specifications##
Specifications
General |
|
| Channels | Monoblock/4/5 |
|---|---|
| Physical dimensions (Height) | 49 mm (1.93") |
| Physical dimensions (Width) | 273 mm (10.74") |
| Physical dimensions (Depth) | 199 mm (7.85") |
| Weight | Monoblock: 2.99 kg (6.6 lbs) 5-Channel: 3.11 kg (6.85 lbs) |
| Warranty | 2 years |
| Operating voltage | 11-14.5 VDC (12 V Models) 22-29 VDC (24 V Models) |
Audio |
|
| Amplifier class | Class D |
|---|---|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | Monoblock: 750 W x 1 4-Channel: 150 W x 4/300 W x 2 (Bridged) 5-Channel: Main: 100 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) | Monoblock: 750 W x 1 4-Channel: 150 W x 4/300 W x 2 (Bridged) 5-Channel: Main: 75 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) | Monoblock: 750 W x 1 4-Channel: 150 W x 4/300 W x 2 (Bridged) 5-Channel: Main: 100 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) | Monoblock: 750 W x 1 4-Channel: 150 W x 4/300 W x 2 (Bridged) 5-Channel: Main: 75 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (28.8 V input @ 4 Ohm < 1% THD) | 4-Channel (24 V): 150 W x 4/300 W x 2 (Bridged) 5-Channel (24 V): Main: 100 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (28.8 V input @ 2 Ohm < 1% THD) | 4-Channel (24 V): 150 W x 4/300 W x 2 (Bridged) 5-Channel (24 V): Main: 75 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (25 V input @ 4 Ohm < 1% THD) | 4-Channel (24 V): 150 W x 4/300 W x 2 (Bridged) 5-Channel (24 V): Main: 100 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (25 V input @ 2 Ohm < 1% THD) | 4-Channel (24 V): 150 W x 4/300 W x 2 (Bridged) 5-Channel (24 V): Main: 75 W x 4/Sub: 500 x 1 |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | Monoblock: > 110 dB below rated power 4-Channel: > 110 dB 5-Channel: > 108.5 dB below rated power |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | Monoblock: > 88 dB 4/5-Channel: > 88.2 dB |
| Damping factor @ 4 Ω | Monoblock: > 500/50 Hz 4-Channel: > 300/50 Hz 5-Channel: > 400/50 Hz |
| Damping factor @ 2 Ω | Monoblock: > 250/50 Hz 4-Channel: > 150/50 Hz 5-Channel: > 200/50 Hz |
| THD+N @ Rated Power | Monoblock/4-Channel: < 0.03% @ 4 Ω |
| THD+N @ Rated Power: Main Channels | 5-Channel: < 0.03% @ 4 Ω |
| THD+N @ Rated Power: Subwoofer Channel | 5-Channel: < 0.05% @ 4 Ω |
| Frequency response (+0, -1dB) | Monoblock: 6 Hz-8 kHz 4-Channel: 6 Hz-30 kHz |
| Frequency response (+0, -1dB): Main Channels | 5-Channel: 12 Hz-28 kHz |
| Frequency response (+0, -1dB): Subwoofer Channel | 5-Channel: 12 Hz-10 kHz |
| Input voltage range @ RCA inputs | Switchable from 200 mV-2 V RMS (low) to 800 mV-8 V RMS (high) |
| Fuse rating | Monoblock/5-Channel: 60 A 4-Channel: 50 A 4-Channel (24 V): 25 A 5-Channel (24 V) 30 A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse™ |
| Min. copper power/Ground wire gauge | 4 AWG wire |
Signal Processing |
|
| Filter mode(s): Channels 1 & 2 | 4-Channel: Off, Low-Pass or High-Pass 5-Channel: Off or High-Pass only |
|---|---|
| Filter slope(s): Channels 1 & 2 | 4/5-Channel: 12/24 dB/octave |
| Filter frequency range: Channels 1 & 2 | 4/5-Channel: 50 Hz-500 Hz |
| Filter mode(s): Channels 3 & 4 | 4-Channel: Off, Low-Pass or High-Pass 5-Channel: Off or High-Pass only |
| Filter slope(s): Channels 3 & 4 | 4/5-Channel: 12/24 dB/octave |
| Filter frequency range: Channels 3 & 4 | 4/5-Channel: 50 Hz-500 Hz |
| Filter mode(s): Subwoofer Channel | Monoblock: Off, Low-Pass or High-Pass 5-Channel: Off or Low-Pass only |
| Filter slope(s): Subwoofer Channel | Monoblock: 12/24 dB/octave |
| Filter frequency range: Subwoofer Channel | Monoblock: 50 Hz-500 Hz |
| Detented, calibrated filter frequent potentiometers | YES |
| Infrasonic filter: Subwoofer Channel | Monoblock/5-Channel: 30 Hz, defeatable |
| Remote level control | Optional (HD-RLC) |
| Remote level modes | 4-Channel: 2 or All Channels 5-Channel: Sub Channel only |
| Channel input mode switch | 4-Channel: yes (2/4 Channels) 5-Channel: yes (2/4/6 Channels) |
| Output polarity switch | Monoblock: yes |
| Pass-through preamp output | Monoblock/4-Channel: Buffered 5-Channel: Buffered |
| Source channel selection for PreOuts | 4-Channel: yes |
##Specifications##
##In the Box##
In the Box
- MHD amplifier
- Power input plug
- Speaker connection plug(s)
- Four mounting feet
- 2.5 mm Allen wrench
- 4 mm Allen wrench
- Four machine screws
- JL Audio badge
##In the Box##
