Description

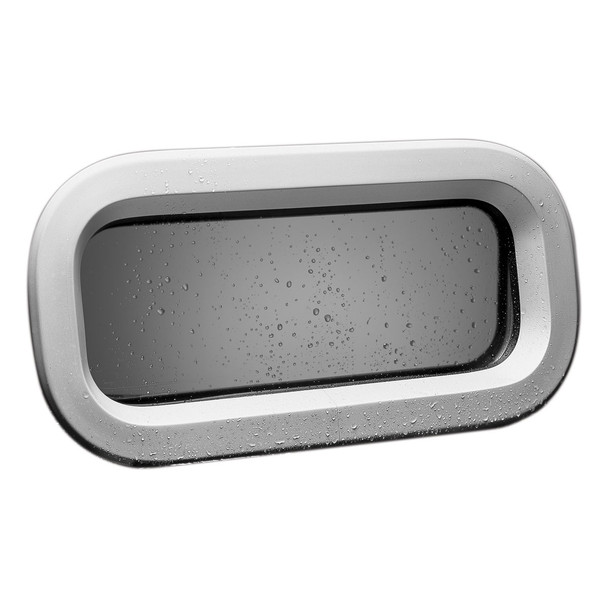

Lewmar Atlantic Opening Portlight - Thick Valance
Designed with strength and functionality in mind, Lewmar’s Atlantic range of portlights feature inner and outer extruded aluminium frames, which have been deep anodised for additional corrosion resistance. Other important design highlights include an exterior shape to allow water to drain away even when mounted on an angled coach roof, preventing water entering the cabin when opening the portlight. Opening and fixed versions are available as well as optional thick valance version. Supplied complete with insect screen.
Features
• Strong aluminium outer frame with single welded join
• Lens bonded into alloy frame for additional stiffness
• Metal handles
• Anodised aluminium interior finish
• Friction hinges hold the window open
• CE Approved for Area 2A
|
Part Number
|
Size
|
Version
|
Hull Thickness mm
|
Acrylic Colour
|
Outside XxY LxW mm
|
Cut Out X1xY1 LxW mm
|
Radii R mm
|
Radii R1 mm
|
Height Z mm
|
Acrylic mm
|
|---|---|---|---|---|---|---|---|---|---|---|
| 171053-BLA | 10 | Opening | 16-24 | Grey | 174 x 304 | 154 x 284 | 71 | 61 | 6 | 8 |
| 171054-BLA | 10 | Opening | 8-15 | Grey | 174 x 304 | 154 x 284 | 71 | 61 | 6 | 8 |
| 171055-BLA | 30 | Opening | 16-24 | Grey | 200 x 400 | 180 x 380 | 71 | 61 | 6 | 8 |
| 171056-BLA | 30 | Opening | 8-15 | Grey | 200 x 400 | 180 x 380 | 71 | 61 | 6 | 8 |
| 171058-BLA | 32 | Opening | 8-15 | Grey | 198 x 401 | 178 x 381 | 99 | 89 | 6 | 8 |
| 171059-BLA | 32 | Opening | 16-24 | Grey | 198 x 401 | 178 x 381 | 99 | 89 | 6 | 8 |
| 171060-BLA | 40 | Opening | 16-24 | Grey | 200 x 480 | 180 x 460 | 71 | 61 | 6 | 8 |
| 171061-BLA | 40 | Opening | 8-15 | Grey | 200 x 480 | 180 x 460 | 71 | 61 | 6 | 8 |
| 171062-BLA | 60 | Opening | 16-24 | Grey | 200 x 600 | 180 x 580 | 71 | 61 | 6 | 8 |
