Description

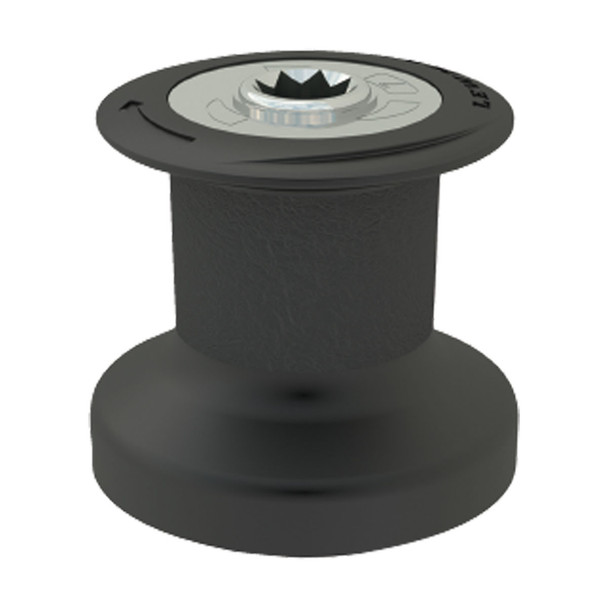

Lewmar EVO Sport Sheet Winches - Black Alloy
The EVO® Sport range is a general winch suited to a wide range of sailing vessels from club racers to sports boats. Designed to perform under constant trimming and provide years of trouble-free use. Traditional chrome bronze drums are featured across the range while aluminium drum models are available where weight consideration is a premium. One or two-speed gearing and a size range from 6 to 40 are available in black alloy or chrome bronze. All winches are supported by a comprehensive range of winch spares and suitable for mast mount applications.
Features
• Ability to convert a standard size 30 and 40 into EVO® self-tailing winches retrospectively
• Available in size 6 to size 40
• Tool free servicing
• Size 40 can be converted to electric operation
• Choice of finishes black alloy or chrome bronze
• 7 year worldwide warranty
|
Model
|
BLA Code Black Alloy
|
Weight kg
|
Weight kg
|
Gear Ration 1st
|
Gear Ratio 2nd
|
Power Ration 1st
|
Power Ration 2nd
|
Drum Dia mm
|
Base Dia mm
|
Height mm
|
Mounting Type
|
PCD mm
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 430300-BLA | 0.5 | 1.1 | 1.1 | – | 6.8:1 | – | 59 | 94 | 83 | 4 x M6 | 66 |
| 7 | 430304-BLA | 0.8 | 1.7 | 1.1 | – | 7.9:1 | – | 65 | 108 | 102 | 4 x M6 | 80 |
| 8 | 430308-BLA | 1.4 | 2.3 | 1.1 | – | 7.9:1 | – | 65 | 108 | 103 | 5 x M6 | 80 |
| 16 | 430312-BLA | 1.4 | 2.3 | 1.1 | 2:1 | 7.9:1 | 16:1 | 67 | 120 | 112 | 5 x M6 | 94 |
| 40 | 430320-BLA | 5.5 | 7 | 1.9:1 | 5.8:1 | 13.2:1 | 40.2:1 | 158.5 | 148 | 158.5 | 5 x M6 | 121 |
