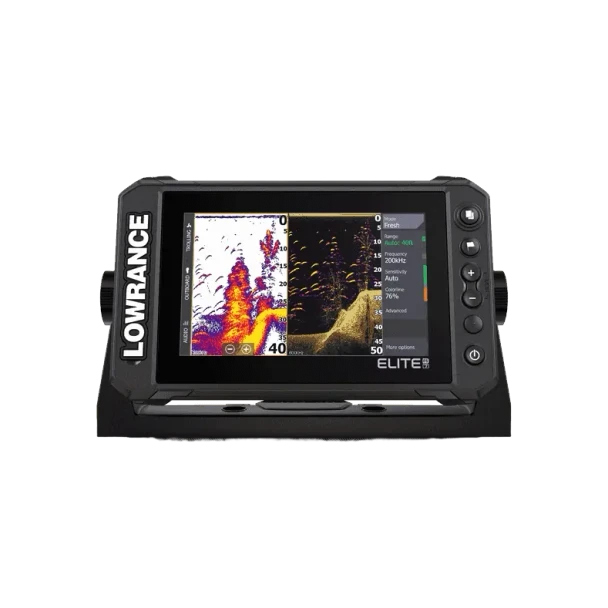

Lowrance ELITE FS 7 With CMAP AUS - No Transducer

ELITE FS 7 with No Transducer (AUS/NZ). The new Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget live sonar, Active Imaging, FishReveal and preloaded C-MAP Contour + charts.

• ActiveTarget Live sonar and Active Imaging compatible Live Sonar: Supports sonar accessories such as ActiveTarget and Active Imaging 3-in-1 Sonar
• Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
• High Resolution Multi-touch screen
• Preloaded with C-MAP Contour + charts (AMER,APAC)
• NMEA 2000®: Support and control NMEA 2000 devices
• Halo Radar: Drive Lowrance radar domes directly
• Total Control: Full touchscreen control of Power Pole anchors and Ghost Trolling Motor

Features

• 1 kW sonar for serious depth
• 7 inch screen clear in sunlight
• IPX6/IPX7 build for Aussie spray
• 28 W max draw on 12 volts
• NMEA 2000 and Ethernet onboard
• microSD/SDXC slot for mapping

##Specifications##

Specifications

• Max sonar power output: 1 kW RMS
• Active Imaging 3-in-1 DownScan 455 kHz max depth 91 m
• SideScan 455 kHz range 91 m to each side
• CHIRP High 160–240 kHz or 200 kHz max depth 305 m
• CHIRP Medium 60–100 kHz or 83 kHz max depth 305 m
• CHIRP Low 40–60 kHz or 50 kHz max depth 900 m
• Operating temperature range: -15°C to +55°C
• Storage temperature range: -20°C to +60°C
• Waterproof rating: IPX6 and IPX7
• Supply voltage: 12 V DC (10–17 V DC)
• Recommended fuse rating: 3 A
• Maximum power consumption: 28 W
• Display resolution: 800 x 480 pixels
• Display brightness: > 1200 nits
• Display weight: 0.9 kg
• Compass safe distance: 0.5 m
• NMEA 2000 Micro-C port: 1
• Ethernet 100Base-T port: 1
• Sonar 9-pin port: 1
• MicroSD/SDXC card slot: 1
• Internal WiFi: 802.11 b/g/n
• Bluetooth version: 4.0
• GPS update rate: 10 Hz with WAAS MSAS EGNOS GLONASS support
