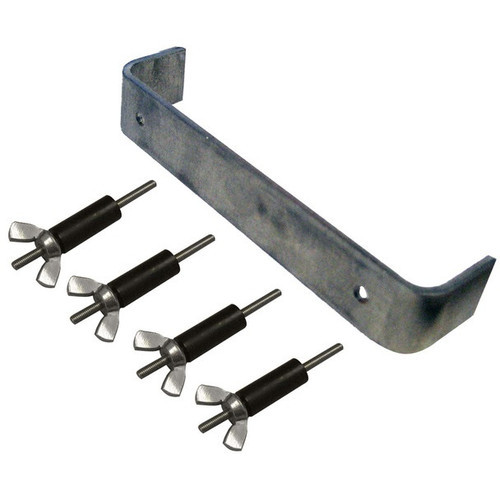

Lowrance Flush Mount For ELITE FS 9

Flush Mount Kit for Elite FS 9 Displays.

Seamless Integration for Your Elite FS 9 Display

Transform your boat's helm into a sleek, professional setup with this dedicated flush mount kit tailored for the Lowrance Elite FS 9. Designed for boaters who demand a clean, low-profile installation, it eliminates bulky brackets and exposed edges, creating a streamlined console that looks factory-installed. Whether you're upgrading your bass boat, center console, or offshore vessel, this kit ensures your high-resolution fishfinder sits perfectly flush, maximizing visibility while protecting the unit from harsh marine conditions.

Key Advantages of Flush Mounting

Enhanced Aesthetics: Achieve a custom, built-in look that boosts your boat's resale value and turns heads at the dock
Improved Durability: Recessed mounting shields the screen from accidental impacts, UV exposure, and spray—ideal for rough waters
Space Efficiency: Frees up dash real estate for additional gear like radars or multifunction displays
Ergonomic Viewing: Positions the 9-inch display at eye level for effortless chart reading and sonar monitoring during long days on the water

Complete Kit Contents for Easy Setup

Everything you need arrives in one package, minimizing trips to the hardware store. The kit features precision-cut stainless steel or high-grade composite bezels that match the Elite FS 9's contours exactly, along with templated gimbal covers, mounting screws, and sealing gaskets. No guesswork—just straightforward assembly that supports both standard and custom cut-outs.

Pro Tip for First-Time Installers

Before cutting, double-check your console thickness; this kit accommodates panels from 1/4-inch up to 2 inches thick, common in fiberglass and aluminium dashes. Use the included paper template to trace your outline, ensuring a perfect fit on the first try.

Step-by-Step Flush Mount Installation

Installing this kit takes about 1-2 hours with basic tools like a jigsaw, drill, and screwdriver. Here's a reliable walkthrough based on real-world boating installs:

Prep the Surface: Clean and dry your console area. Apply painter's tape over the template to prevent scratches.
Cut the Hole: Follow the template precisely—over-cutting is a common pitfall that leads to gaps. Use a fine-tooth blade for smooth edges.
Test Fit: Dry-fit the bezel and display to verify alignment before finalizing.
Seal and Secure: Apply marine-grade silicone around the gasket for waterproofing, then torque screws evenly to avoid warping.
Route Cables: Feed power, transducer, and network cables through pre-drilled rear ports for a tidy, hidden setup.
Final Check: Power up and test all functions; adjust bezel clips if needed for a snug hold.

Bonus: For curved surfaces like newer bowriders, warm the bezel slightly with a heat gun for better conformability without cracking.

Perfect Fit for Elite FS Series and Beyond

Engineered specifically for the Elite FS 9, this kit also cross-compatibles with similar-sized Lowrance units in the lineup, making it a versatile choice for multi-display setups. It pairs seamlessly with Active Imaging transducers and Ethernet networking, ensuring no interference with your sonar performance. Boaters report zero signal loss post-install, even in high-vibration environments like tournament trails.
