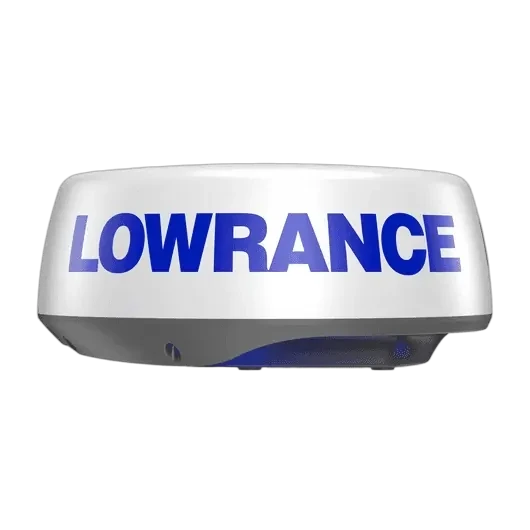

Lowrance HALO 20+ Radar

HALO20+ Radar - A compact 20'' powerful 25W Solid-State Radar, delivering 60RPM at short range and up to 36nm range. Identify hazards in an instant with VelocityTrack Doppler technology and can run dual scale to identify hazards long and far.

Features

• Smart buy for small and mid-size boats
• Built tough IPX6 dome for open mounting
• Dual range view helps tackle busy channels
• 20–60 RPM keeps targets current
• Works on 12V and 24V DC systems

##Specifications##

Specifications

• Radar type: 25W solid-state pulse compression dome radar
• Max range: 36 nautical miles with 18 range settings
• Minimum range: 6 m (19.7 ft)
• Antenna rotation speed: 20–60 RPM (mode dependent)
• Antenna horizontal beam width: 4.9° nominal (-3 dB)
• Antenna vertical beam width: 25° (-3 dB nominal)
• Target separation control: OFF to HIGH beam sharpening modes
• Operating frequency: X-band 9.4–9.5 GHz
• Sweep bandwidth: 48 MHz max
• Pulse length: 0.04–64 μs
• Sweep repetition frequency: 700–2400 Hz (mode dependent)
• Power consumption operating: 17–29 W at 13.8 V DC
• Power consumption standby: 3.9 W at 13.8 V DC (~170 mA)
• DC input voltage range: 9–31.2 V DC (12/24 V systems)
• Minimum startup voltage: 10.75 V DC
• Transmitter warm-up: solid state InstantOn (no magnetron)
• Compliance: CE, FCC ID RAYHALO20PLUS, IC 978B-HALO20PLUS
• Environmental standard: IEC60945:2002
• Operating temperature: -25°C to +55°C (-13°F to +130°F)
• Relative humidity: 95% RH at +35°C (+95°F)
• Waterproof rating: IPX6
• Maximum relative wind speed: 51 m/s (100 knots)
• Outside dimensions: diameter 510 mm (20 in), height 223 mm (8.8 in)
• Scanner weight (no cable): 5.9 kg (13 lb)
• Radar ranges: 100 m (328 ft) to 36 nm
• Rotation range: 20–60 RPM (mode and MFD dependent)
• Plane of polarisation: horizontal
• Transmitter peak power output: 25 W
• Side lobe level: below -18 dB within ±10°, below -24 dB outside ±10°
• Noise figure: less than 5 dB nominal
• Communication protocol: Ethernet 100Base-T
• Maximum interconnecting cable length: 30 m (98.5 ft) without NEP-2
• Safety minimum distance (Halo20+ table): 1.0 m (3.30 ft)
