Description

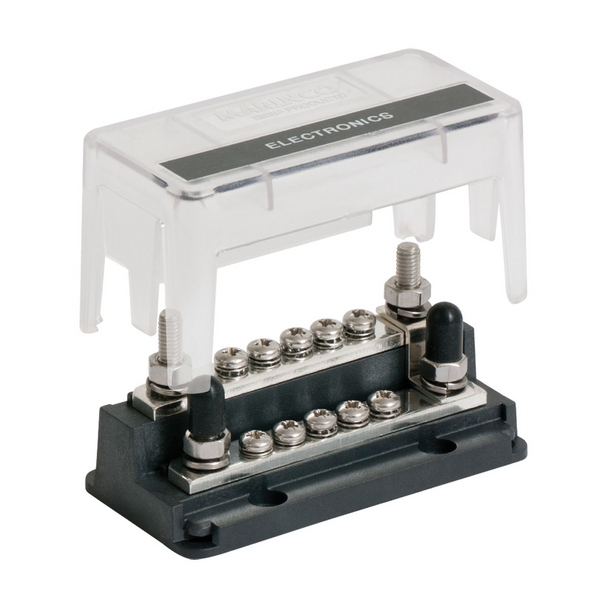

Marinco Pro Installer Z Busbars 10 Way
Marinco Pro Installer Buss Bar Pro Inst 10 Way Z Cvr 2X200A -B 114614B10
Marinco Products have created a completely new concept for small cable termination with the Z-Bar range.
These busbars maximise power density by utilising high and low level bars to optimise cable runs, saving even more installation space.
Specifications:
• 10 Way and 18 Way versions
• 4x 6mm (1/4″) studs with anti-seize lubricant
• 4mm (5/32″) terminals with captive lock washers
• 200A maximum per bar (2 x 200A)
• 50VDC
• Tinned CDA102 Copper conductors
• Stainless steel studs, washers, nuts for longevity in the marine environment
• Metric threads
|
BLA Item Code
|
Description
|
QTY
|
FOOTPRINT
|
|---|---|---|---|
| 114614P | 10 way, Z busbar | 1 | 1 x |
| 114614B10 | 10 way, Z busbar | 10 | 1 x |
| 114616P | 18 way, Z busbar | 1 | 1.5 x |
