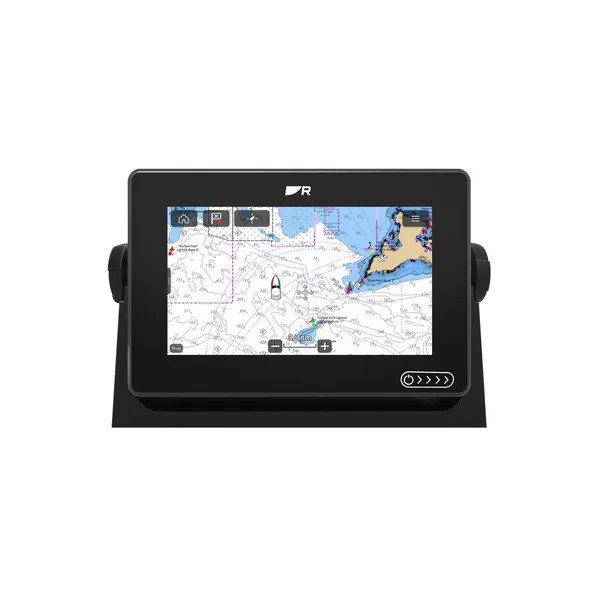

Raymarine AXIOM+ 7, Multi-function 7 inch Display with Australia & New Zealand LightHouse Chart

All in one chartplotter, plus more.

Axiom®+ is a new generation of Axiom chartplotters upgraded with all-weather higher resolution displays that are 25 percent brighter than the previous generation. Axiom+ displays are equipped with a powerful quad-core processor for industry-leading speed and responsiveness.

Seamlessly redraw charts and expand Axiom+ with solid state radar, and FLIR thermal cameras or add a marine camera and navigate with ClearCruise Augmented Reality. Axiom+ features the renowned, smart and intuitive LightHouse operating system, so you can easily navigate and expand your system.

Make smarter navigation decisions by adding an AIS unit, allowing you to safely navigate busy waterways with AIS target overlays. Or, upgrade to ClearCruise Augmented Reality and visualise AIS targets, navigation aids and waypoints in high definition video.

## Features##

Features

Performance Tuned - Navigate with ease with fast and fluid chart redraw of LightHouse, Navionics and C-MAP electronic charts.

Ready to Expand - Integrate your Axiom+ into your network with multiple displays, radars, engines, marine cameras and more.

Maximum Visibility - Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color, now 25% brighter.

LightHouse Colour Themes - Improve your viewing in different light conditions with new Day, Dusk and Night modes.

HydroTough Coated - Nano-coated, impact resistant screen dispels water, oil and smudges, and delivers improved colour contrast and accurate touch controls even when wet.

## Features##

## Specifications##

Specifications

Dimensions

• Screen Size (Diagonal) - 7"
• Dimensions Trunnion Mounted:
  • Width - 250.4mm
  • Height - 162.5mm
  • Depth (Including Cables) - 218mm
• Dimensions Surface / Flush Mounted:
  • Width - 201.1mm
  • Height - 133mm
  • Depth (Including Cables) - 218mm

Technical Specs

• Resolution - 1024 x 600 px
• Accessory Connection - USB Micro B
• Ethernet Connection - RayNet (10/100 Mbits/s)
• External Storage - MicroSDXC Card Slot x 1
• NMEA 2000 Connection - DeviceNet (male connector built into power cable)
• Wireless Connections - Bluetooth
• Internal Storage - 16 GB Solid State (14 GB Usable)
• Transducer Connection - 25 pin RealVision type connector.  Requires the A80490 adaptor cable for CPT-S style transducers
• Power Consumption - 7.34 W
• Operating Voltage - 8V DC to 16 V DC
• Nominal Supply Voltage - 12V DC
• Waterproof Rating - IPX 6, IPX 7
• GPS Channels - Track up to 28 satellites simultaneously
• Position Accuracy - Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
• Operating Frequency - 1574 MHz to 1605 MHz
• Refresh Rate - 10 Hz (10 times per second)
• Time to fix from cold start - < 2 minutes

## Specifications##

## In the Box##

Whats in the Box?

• 7" Axiom+ Multi Function Display
• Trunnion Bracket with 2 x Knobs
• Panel Mount Gasket
• 4 x Threaded Studs M5 x 58
• 4 x Thumb Knuts M5
• Power / NMEA 2000 Cable (1.5m Power Lead, 0.5m NMEA 2000 Lead)
• DeviceNet to SeaTalkng Adaptor Cable 120mm
• Suncover
• Documentation
