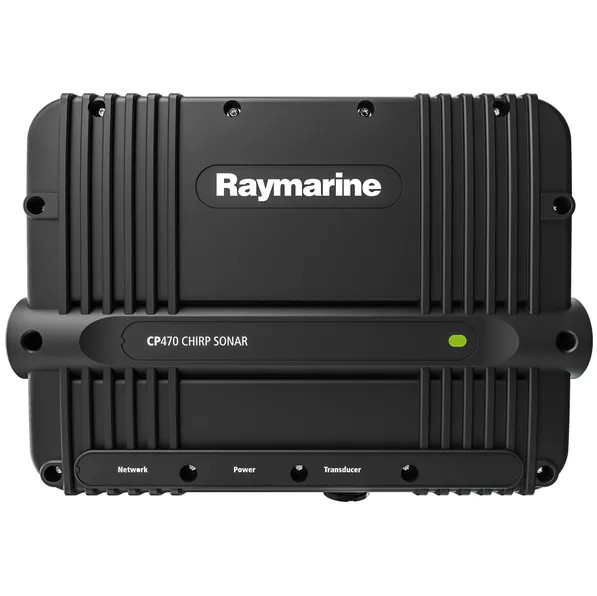

Raymarine CP470 2KW CHIRP Sonar Module

Engineered for serious anglers, the CP470 sonar module brings best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays.

Using a wide spectrum of frequencies and greater sensitivity the CP470's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish.

Features

• TruZoom: TruZoom™ provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar
  • Automatic transducer identification with Airmar Xducer ID
  • Airmar Wide Beam transducer compatible
• Waterproofing Standard: IPX6 Waterproof
• Compatibility: aSeries | cSeries | eSeries | gS Series
• Nominal Supply Voltage: 12/24 V DC
• Power Consumption: 30.6W (Maximum)
• Connections: Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection
• Weight: 1.539kg

## Specifications##

Specifications

Physical & Performance

Overview

• E70298: CP470 CHIRP Sonar
• Recommended for: Coastal and Offshore Fishing
• Sonar Type: Wide Spectrum CHIRP
• Power: 1kW / 2kW depending on transducer
• Frequency & Channels: Dual CHIRP from 25 to 250kHz
• Depth Range: 10,000ft (3,000m)
