Description

Savwinch Signature Series Drum Winch - Signature Series

All Savwinch Drum Winches feature a sealed motor and gearbox with a 316 grade stainless steel drum and body to protect from water ingress and corrosion and come complete with double braid rope, chain and switchgear for hassle free anchoring.

Features
• Motor is fully sealed from corrosion/water. No exposed terminals
• Custom rope kits available to suit any anchoring depth
• Australian designed
• Motor & gearbox can be adjusted in up to 12 positions to drum
• Retailed packaged

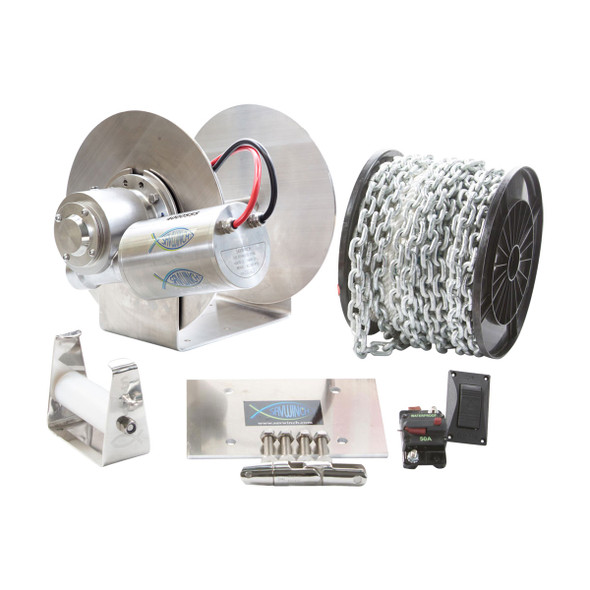

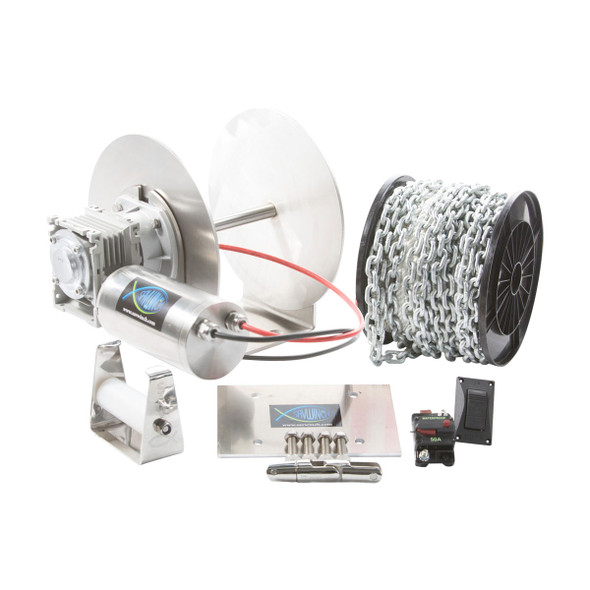

880/1000/1500/2000 Kit Includes
•Savwinch Drum Winch
• Up/Down Switch
• Solenoid
• Circuit Breaker
• Rope and Chain Kit
• Backing Plate & Bolts*
• Guide Roller*
• Anchor Swivel

3000/4000 Kit Includes
• Savwinch Drum Winch
• Up/Down Switch
• Solenoid
• Circuit Breaker

N.B. * not included in OEM kits
** measurement does NOT include waterproof glands or wire 880 size only has 8 mounting positions at time of printing

Specifications

Winch Model	Part Number	OEM Kit Code	Drum Size mm	Max Vessel Size m	Rope Length	Chain Length m	Total Length m	A mm	B mm	C mm	D mm	E mm
880-SS	153200-BLA	-	200mm	5.2m	65m x 6mm	6m x 6mm	71m	332mm	315mm	200mm	210mm	120mm
1000-SS	153202-BLA	153202B	240mm	7m	95m x 6mm	7m x 6mm	102m	370mm	377mm	240mm	250mm	140mm
1500-SS	153204-BLA	153204B	280mm	8m	95m x 8mm	8m x 6mm	103m	390mm	377mm	280mm	300mm	140mm
2000-SS	153206-BLA	-	295mm	10m	130m x 8mm	10m x 6mm	140m	411.5mm	419mm	295mm	304mm	200mm
3000-SS	153208-BLA	-	320mm	20m	170mx 8mm	15m x 6mm	185m	482mm	500mm	320mm	331mm	20mm
