Description

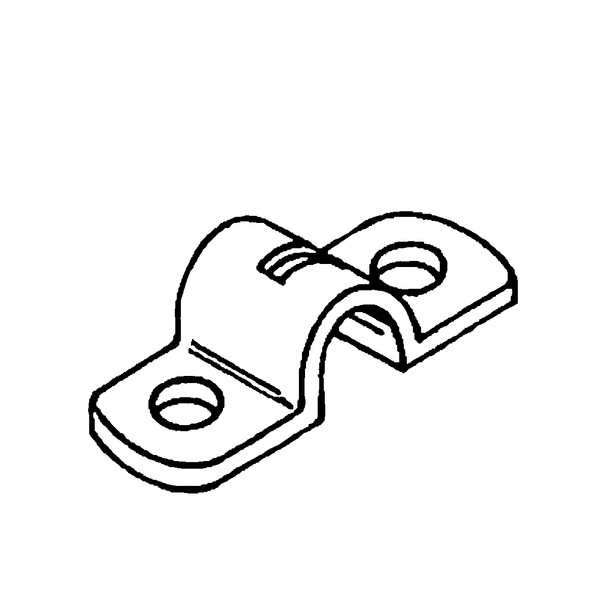

Seastar Cable Clamps and Shims
Used to fasten the outer casing of 33, 43 and 64 series control Cableswith clamp type hubs. Available as separate components or as clamp and shim assemblies. Passivated steel construction, 309782 only is manufactured of stainless steel.
|
Part Number
|
Materials
|
Cable Series
|
A mm
|
B mm
|
C mm
|
D mm
|
E mm
|
|---|---|---|---|---|---|---|---|
| 309780-BLA | Steel | 33 | 9.5mm | 25 | 38 | 13 | 5 |
| 309782-BLA | S/S | 33 | 9.5mm | 22 | 33 | 13 | 5 |
| 309784-BLA | Steel | 43 | 12.7mm | 25 | 38 | 13 | 5 |
| 309800-BLA | Steel | 33 & 43 | 25 | 38 | 13 | 5 | |
| 309814-BLA | Steel | 33 | 9.5 | 25 | 35 | 13 | 5 |
| 309815-BLA | S/S | 33 | 9.5 | 25 | 35 | 13 | 5 |
| 309816-BLA | Steel | 43 | 12.7 | 25 | 35 | 13 | 5 |
| 309818-BLA | Steel | 63 | 14.3 | 32 | 45 | 19 | 7 |
