Description

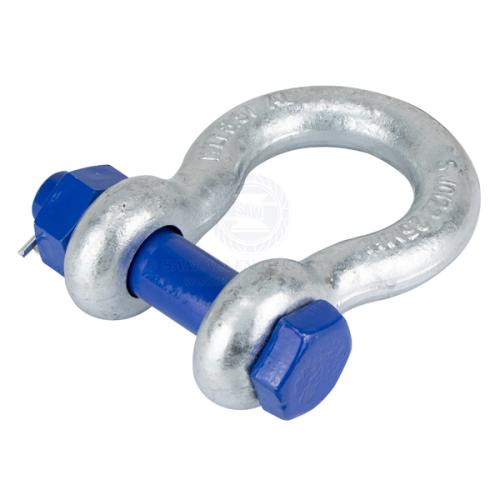

Shackles - Bow - Safety Pin Galvanised - Grade S
This heavy-duty bow shackle is hot-dip galvanised and built to Grade 'S' specifications for reliable performance in demanding industrial and marine applications. It features a secure safety pin design and a high working load limit (WLL) of 9.5 tonnes. Ideal for heavy rigging and anchor systems where safety and strength are paramount.
## Features##
Features
- Grade 'S' rated bow shackle
- Hot-dip galvanised for corrosion resistance
- Fitted with a secure safety pin
- High working load limit of 9.5T
- Suitable for industrial and marine applications
## Features##
## Specifications##
Specifications
| Part No. | Description | Weight | Pin Dia. | Body Dia. | A | B | C | D | WLL | Pin Type |
|---|---|---|---|---|---|---|---|---|---|---|
| 130083 | Shackle galvanised bow Grade 'S' 29 x 32mm safety pin rated 9.5T | 3.75kg | 32.0mm | 29.0mm | 108.0mm | 46.0mm | 74.0mm | 67.0mm | 9.5T | Safety Pin |
## Specifications##
