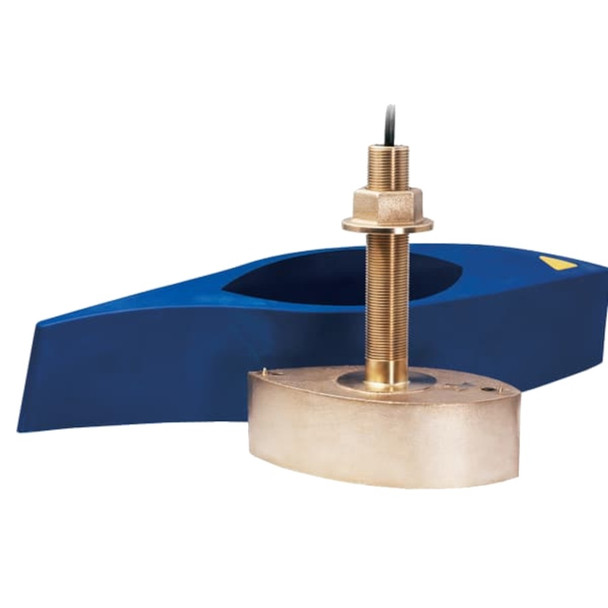

Simrad & Lowrance xSonic Airmar B265LH Low/High Transducer 9-Pin Black Plug

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Features

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance
• Low frequency: 42 to 65 kHz
• High frequency: 130 to 210 kHz
• 103 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Also available as transom (TM265LH), pocket (PM265LH), cavity/welded-tank (CM265LH), and in-hull (M265LH) mounts
• Patented Xducer ID technology

##Specifications##

Specifications

• Power Rating: 1 kW
• Max Deadrise Angle: 20°
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: 8 m (25') and above
• Hole Size: 30 mm (1-3/16")
• Usable Shaft Length: 121 mm (4.75")
• Mounting Style: Thru-Hull with Fairing
• Acoustic Window: Urethane
• Common Use: Fishing, Commercial Fishing
• High Frequency: 130-210 kHz
• High Frequency Beamwidth: 10°-6°
• Low Frequency: 42-65 kHz
• Low Frequency Beamwidth: 25°-16°
• Max Deadrise: Up to 20° with fairing
• Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')
• Retractable housing: No
• Single or Dual Frequency: CHIRP-Ready Dual-Band
• Tilted Element: No
• Weight: 7.3 kg (16 lb.)
