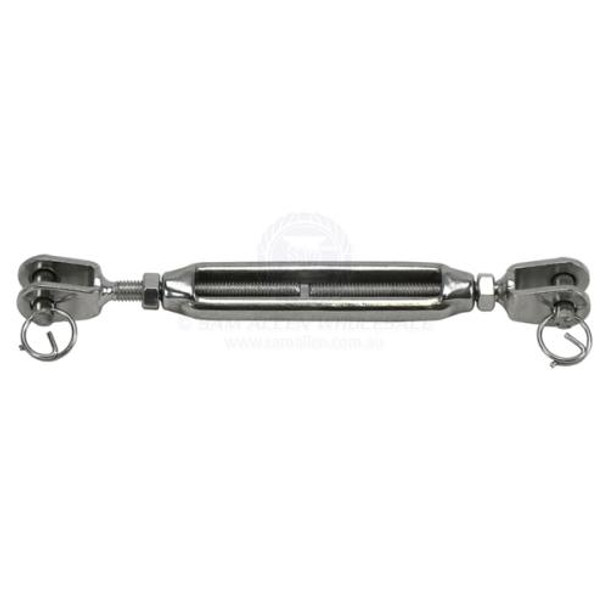

Turnbuckles - Jaw & Jaw - Stainless Steel - 316G
These high-performance Turnbuckles with Jaw & Jaw configuration are manufactured from premium 316G stainless steel, delivering strength, adjustability, and corrosion resistance for marine, architectural, and industrial rigging systems. The open body design provides a lightweight solution with a clean aesthetic.
## Features##
Features
- 316G stainless steel
## Features##
## Specifications##
Specifications
| Part No. | Description | A | B | Thread Size | Min. Length | Max. Length | SWL | BL |
|---|---|---|---|---|---|---|---|---|
| 56465 | Turnbuckle 316G SS open body jaw & jaw M5 threads | 130.0mm | 71.0mm | M5 | 100.0mm | 160.0mm | 188kg | 750kg |
| 56466 | Turnbuckle 316G SS open body jaw & jaw M6 threads | 152.0mm | 90.5mm | M6 | 130.0mm | 200.0mm | 350kg | 1400kg |
| 56468 | Turnbuckle 316G SS open body jaw & jaw M8 threads | 192.0mm | 121.5mm | M8 | 175.0mm | 265.0mm | 550kg | 2200kg |
| 56469 | Turnbuckle 316G SS open body jaw & jaw M10 threads | 243.0mm | 151.0mm | M10 | 215.0mm | 340.0mm | 863kg | 3450kg |
| 56472 | Turnbuckle 316G SS open body jaw & jaw M12 threads | 316.0mm | 200.0mm | M12 | 290.0mm | 455.0mm | 1250kg | 5000kg |
