Description

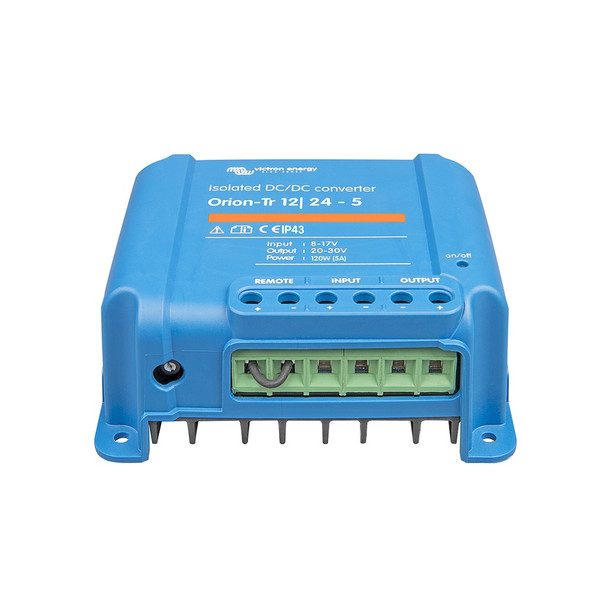

Victron Orion-Tr 12/24-5A (120W) Isolated DC-DC Converter
Features:
- 12V - 24V / 5Amps
- DC-DC Converter
- IP43 Protection
- Adjustable Output Voltage
- Short-Circuit Proof
Remote On/Off:
The remote on-off eliminates the need for a high-current switch in the Input wiring. The remote on-off can be operated with a low-power switch or, for example, the engine run/stop switch (see manual).
Adjustable Output Voltage:
The converter can also be used as a battery charger, for example, to charge a 12-volt starter or accessory battery in an otherwise 24-volt system.
High Temperature Protected:
The output current will reduce at high ambient temperatures.
IP43 Protection:
When installed with the screw terminals oriented downward.
Screw Terminals:
No special tools are needed for installation.
Input Fuse (non-replaceable):
On 12V and 24V input models only.
##Specifications##
Specifications
|
Input Voltage Range |
8-17V |
|
Under Voltage Shut Down |
7V |
|
Under Voltage Restart |
7.5V |
|
Nominal Output Voltage |
24.2V |
|
Output Voltage Adjust Range |
20-30V |
|
Continuous Output Current at Nominal Output Voltage and 25°C |
5A |
|
Maximum Output Current (10s) at Nominal Output Voltage |
6.3A |
|
Short Circuit Output Current |
23A |
|
Efficiency |
88% |
|
Operating Temperature Range |
-20 to +55°C (derate 3% per °C above 40°C) |
|
DC Connection |
Screw Terminals |
|
Maximum Cable Cross-Section |
6mm² |
|
Warranty |
5 Years |
|
Weight |
0.42kg |
|
Dimensions |
100 x 113 x 47mm |
