Description

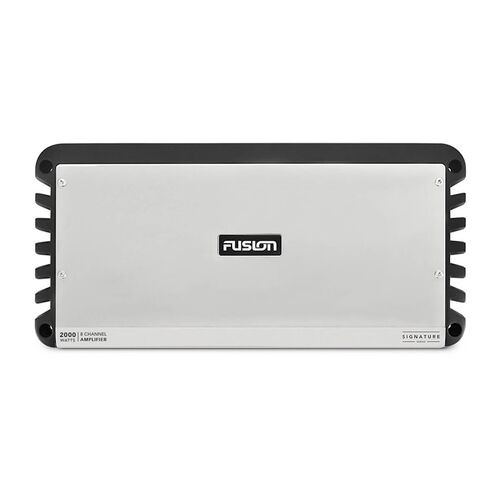

Fusion SG-DA82000 Signature Series 8 Channel 2000W Marine Amplifier

EXPERIENCE THE POWER OF MUSIC

Purpose-built for the marine environment, the Signature Series marine amplifiers feature some of the most impressive environmental protection available — delivering a Signature performance out on the water.

Class-D amplifier design delivers higher efficiency and greater output
Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms for increased power
Conformal coated PCBs provide extra protection from the marine elements
Rigid aluminium alloy heat sink is moulded for greater dissipation of heat
The amplifiers are available in monoblock, 4-channel, 5-channel, 6-channel and 8-channel configurations
Engineered to last season after season, the amplifiers include a supported 3-year warranty

DESIGNED AND ENGINEERED TO TRUE-MARINE STANDARDS
Built on the True-Marine design philosophy from Fusion, the Signature Series amplifiers have been tested to a high level of protection against salt fog, temperature, vibration and UV.

CLASS-D AMPLIFIER TECHNOLOGY
The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for a whole new level of audio performance.

SUPERIOR SYSTEM PERFORMANCE
The Signature Series amplifiers feature built-in variable bass boost, a subsonic filter and variable low/high pass crossover filters for superior performance and enhanced system protection.

MARINE-READY DESIGN WITH CONFORMAL COATED PCBS
Helping to extend the life of your amplifiers, the Signature Series amplifiers are designed with conformal coated PCBs to provide extra protection from the marine elements.

RIGID ALUMINUM ALLOY HEAT SINK
For increased efficiency, the rigid aluminium alloy heat sink is moulded to form a singular die-cast chassis. The fin layout is calculated with precision to increase the surface area of the heat sink and improve heat dissipation.

STAINLESS-STEEL MIRROR FINISH
The polished stainless-steel control panel cover conceals and helps protect all cable connections and settings controls while providing an attractive finish to complement any installation.

##Features##

Features

2000 watt gear for serious onboard audio
Eight channels to tackle multiple zones
Class D layout to protect house banks
Conformal coated boards for salt exposure
Die-cast alloy body made to last
Three-year warranty on trusted Fusion gear

##Features##

##Specifications##

Specifications

Brand: Fusion
Series: Signature Series
Application: Marine amplifier
Channels: 8-channel configuration
Amplifier class: Class D
Peak power: 2000 W (8-channel model)
RMS power @ 4 Ohm (14.4 V, <1% THD): 100 W x 8 (8-channel)
RMS power @ 2 Ohm (14.4 V, <1% THD): 140 W x 8 (8-channel)
Frequency response (8-channel): 10 Hz–40 kHz (-3 dB @ 4 Ohm rated power)
Input sensitivity @ RCA: 0.3 V–8 V RMS (user adjustable)
Input voltage range @ RCA: 0.3 V–8 V RMS
Input impedance (8-channel): 7 kΩ nominal
High-pass/low-pass full range filter: Yes (user selectable)
HP variable crossover range (8-channel): 32 Hz–320 Hz
LP variable crossover range (8-channel): 32 Hz–320 Hz
Bass boost: 0 dB–9 dB (zone 3 only)
Operating voltage (12 V models): 10.8–16 VDC
Operating temperature range: 0°C–50°C (32°F–122°F)
Fuse rating (8-channel): 4 x 40 A ATC blade-type (SAE J1171 compliant)
Minimum copper power/ground wire gauge: 1 AWG
Height: 210 mm (8.27")
Width (8-channel): 420 mm (16.54")
Depth (8-channel): 57 mm (2.24")
Weight (8-channel): 5.6 kg (12.35 lb)
PCB protection: Conformal coated
Heat sink: Rigid aluminium alloy die-cast chassis
Finish: Polished stainless-steel control panel cover
Standby current (12 V models): < 1 mA @ 14.4 V input
Idle current (12 V models): < 2.5 A @ 14.4 V input
Current consumption max (8-channel): 100 A
Warranty: 3 years
Environmental testing: Salt fog, temperature, vibration and UV tested to True-Marine standards
