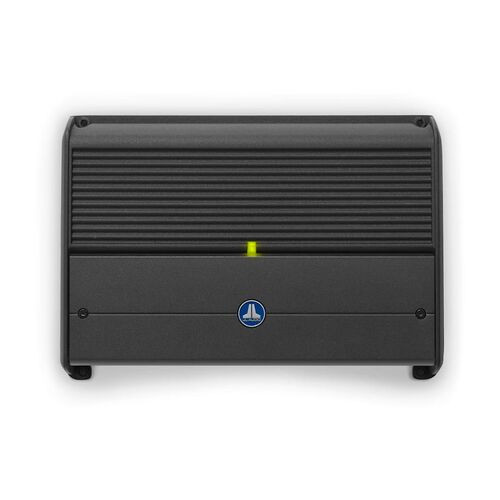

JL Audio XDM Car And Marine Amplifier, 6 Channel Full-Range, 600W - XDM600/6

6-Channel Class D Full-Range Car/Marine Amplifier, 100 W x 6 @ 2 Ω / 75 W x 6 @ 4 Ω - 14.4V

With NexD technology, XDM amplifiers achieve total amplifier efficiencies exceeding 80%. This results in reduced energy use, making them much kinder to your electrical system.

MULTIPLE CONFIGURATIONS TO FIT NEARLY ANYWHERE

EXCLUSIVE INPUT FILTER FOR AMAZING AUDIO ON LAND OR SEA

EFFICIENT DESIGN FOR HIGH OUTPUT USES LESS ENERGY

FULL SUITE OF STUDIO-GRADE SIGNAL PROCESSING ON BOARD

UNIQUE DESIGN ADJUSTS OPERATION TO AVOID THERMAL EVENTS

2-YEAR WARRANTY

FIDELITY FOR ALL
Our exclusive dual-mode input filter and differential-balanced inputs result in outstanding noise rejection and crystal-clear audio performance in boats or cars.

EQUIPPED WITH NexD
Advanced switching technology for exceptional efficiency reduces current draw and heat, permitting reliable high-power output from a compact and easy-to-install chassis.

STUDIO-GRADE SIGNAL PROCESSING
Beneath every XDM amplifier’s sealed security cover, you’ll find audiophile-grade signal processing with fully variable filters and calibrated potentiometers.

ADVANCED ROLLBACK PROTECTION
Innovative circuit design ensures the amplifier will never shut down due to thermal overload and keeps the music playing, even under the most demanding conditions.

AUTO TURN-ON CAPABILITIES
Choose from 3 options: auto signal sensing with +12-volt remote out; auto DC-offset sensing with +12-volt remote out; or conventional +12 volt turn-on lead.

BUILT TOUGH
The all-aluminium, powder-coated housing inhibits corrosion, and a sealed security cover protects controls from the elements.

CHOOSE YOUR MODEL

FULL-RANGE STEREO
These amplifiers are available in 2, 4, 6 and 8 channel variants.

SYSTEM AMPLIFIERS
There are 3 models to power a whole system with 2 or 4 full-range outputs plus a subwoofer output.

MONOBLOCK
Three models are available with 300, 600 and 1000 watts.

24-VOLT OPTIONS
These amplifiers are available in 6 and 8 channel variants.

##Features##

Features

• Six channels for flexible speaker layouts
• 600 W total power for clear volume
• Compact 52 x 260 x 180 mm chassis
• NexD Class D design saves current
• Aluminium case shrugs off marine use
• Adjustable filters control tone and punch

##Features##

##Specifications##

Specifications

Type: 6 channel full-range car and marine amplifier (600 W)

• Amplifier class: Class D

• Rated continuous power (RMS, 14.4 V, 4 Ω): 6-channel model 75 W x 6 / 200 W x 3 bridged

• Rated continuous power (RMS, 14.4 V, 2 Ω): 6-channel model 100 W x 6

• Operating voltage: 11 – 14.5 VDC (12 V models)

• Efficiency: NexD technology with total amplifier efficiency exceeding 80%

• Frequency response (+0, -1 dB): 12 Hz – 22 kHz (2/4/6-channel)

• Signal-to-noise ratio (A-weighted, 20 Hz – 20 kHz): > 104 dB (2/4/6-channel, analog inputs)

• THD+N at rated power: < 1% @ 2 Ω per channel (6-channel)

• Damping factor @ 4 Ω: > 150 @ 50 Hz (2/4/5/6-channel)

• Physical height: 52 mm (2.05")

• Physical width (6-channel): 260 mm (10.23")

• Physical depth: 180 mm (7.09")

• Weight (6-channel): 2.63 kg (5.8 lbs)

• Fuse rating (6-channel): 50 A

• Recommended fuse types: AFS, AGU or MaxiFuse

• Minimum copper power/ground wire gauge (6-channel): 4 AWG

• Input voltage range at RCA inputs: 200 mV – 4 V RMS

• Filter modes channels 1 & 2 (6-channel): Off, Low-Pass or High-Pass

• Filter modes channels 3 & 4 (6-channel): Off, Low-Pass or High-Pass

• Filter modes channels 5 & 6 (6-channel): Off, Low-Pass or High-Pass

• Filter slopes (all channels on 6-channel): 12 dB/octave

• Filter frequency range channels 1–6 (6-channel): 50 Hz – 500 Hz

• Detented, calibrated filter frequency potentiometers: Yes

• Pass-through preamp output: Buffered (monoblock/2/3/4-channel models)

• Remote level control compatibility: Optional HD-RLC or MHD-RLC (water-resistant)

• Auto turn-on options: Signal sensing with +12 V remote out, DC-offset sensing with +12 V remote out, or conventional +12 V turn-on lead

• Enclosure material: All-aluminium, powder-coated housing with sealed security cover

• Thermal protection: Advanced rollback protection to avoid thermal shutdown

• Warranty: 2 years

##Specifications##

##In the box##

In the Box

• XDM 6-channel full-range car and marine amplifier (600 W)
• 2.5 mm Allen wrench
• JL Audio badge

##In the box##
