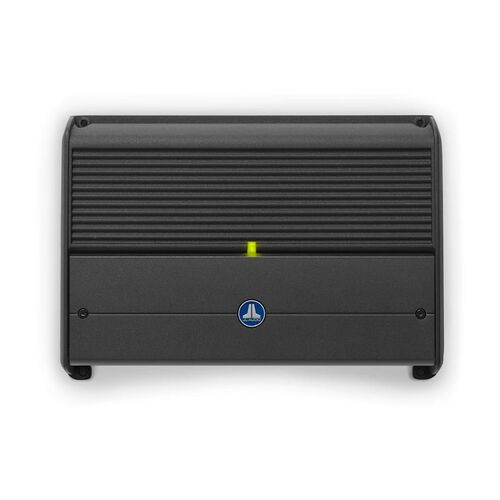

JL Audio XDM Car And Marine Amplifier, 5 Channel 700W - XDM700/5

5-Channel Class D Car/Marine System Amplifier. RMS power @ 14.4 V, 2 Ω: Main 100 W x 4 + Sub 300 W x 1

With NexD technology, XDM amplifiers achieve total amplifier efficiencies exceeding 80%. This results in reduced energy use, making them much kinder to your electrical system.

MULTIPLE CONFIGURATIONS TO FIT NEARLY ANYWHERE

EXCLUSIVE INPUT FILTER FOR AMAZING AUDIO ON LAND OR SEA

EFFICIENT DESIGN FOR HIGH OUTPUT USES LESS ENERGY

FULL SUITE OF STUDIO-GRADE SIGNAL PROCESSING ON BOARD

UNIQUE DESIGN ADJUSTS OPERATION TO AVOID THERMAL EVENTS

2-YEAR WARRANTY

FIDELITY FOR ALL
Our exclusive dual-mode input filter and differential-balanced inputs result in outstanding noise rejection and crystal-clear audio performance in boats or cars.

EQUIPPED WITH NexD
Advanced switching technology for exceptional efficiency reduces current draw and heat, permitting reliable high-power output from a compact and easy-to-install chassis.

STUDIO-GRADE SIGNAL PROCESSING
Beneath every XDM amplifier’s sealed security cover, you’ll find audiophile-grade signal processing with fully variable filters and calibrated potentiometers.

ADVANCED ROLLBACK PROTECTION
Innovative circuit design ensures the amplifier will never shut down due to thermal overload and keeps the music playing, even under the most demanding conditions.

AUTO TURN-ON CAPABILITIES
Choose from 3 options: auto signal sensing with +12-volt remote out; auto DC-offset sensing with +12-volt remote out; or conventional +12 volt turn-on lead.

BUILT TOUGH
The all-aluminium, powder-coated housing inhibits corrosion, and a sealed security cover protects controls from the elements.

CHOOSE YOUR MODEL

FULL-RANGE STEREO
These amplifiers are available in 2, 4, 6 and 8 channel variants.

SYSTEM AMPLIFIERS
There are 3 models to power a whole system with 2 or 4 full-range outputs plus a subwoofer output.

MONOBLOCK
Three models are available with 300, 600 and 1000 watts.

24-VOLT OPTIONS
These amplifiers are available in 6 and 8 channel variants.

##Features##

Features

Five-channel kit for car or boat
NexD Class D design saves current
Compact footprint for hidden installs
Aluminium chassis shrugs off salt spray
Filters and remote options keep control
Solid gear choice for long trips

##Features##

##Specifications##

Specifications

Channels: 5-channel system amplifier (700 W)
Amplifier class: Class D
RMS power @ 14.4 V, 4 Ω: Main 75 W x 4 + Sub 180 W x 1
RMS power @ 14.4 V, 2 Ω: Main 100 W x 4 + Sub 300 W x 1
RMS power @ 12.5 V, 4 Ω: Main 60 W x 4 + Sub 180 W x 1
RMS power @ 12.5 V, 2 Ω: Main 90 W x 4 + Sub 300 W x 1
Frequency response main channels: 12 Hz – 22 kHz (+0, -1 dB)
Frequency response subwoofer channel: 10 Hz – 1 kHz (+0, -1 dB)
Signal-to-noise ratio main channels: > 104 dB (A-weighted, 20 Hz – 20 kHz)
Signal-to-noise ratio subwoofer channel: > 103 dB (A-weighted, 20 Hz – 20 kHz)
THD+N @ rated power (all channels): < 1% @ 2 Ω per channel
Filter modes Ch 1 & 2: Off or High-Pass only
Filter modes Ch 3 & 4: Off, High-Pass or Bandpass
Filter modes Sub channel: Off or Low-Pass only
Filter slopes main/sub: 12 dB/octave or 12/24 dB/octave (sub channel)
Filter frequency range Ch 1–4: 50 Hz – 5 kHz (model dependent)
Filter frequency range subwoofer: 50 Hz – 500 Hz
Pass-through preamp output: Buffered
Remote level control: Optional HD-RLC or MHD-RLC (water-resistant)
Remote level modes: All channels or sub channels
Channel input mode switch: 2/4/6 channels
Operating voltage: 11 – 14.5 VDC (12 V models)
Efficiency: NexD technology with total amplifier efficiency exceeding 80%
Fuse rating: 60 A
Recommended fuse type: AFS, AGU or MaxiFuse
Minimum power/ground cable size: 4 AWG copper wire
Physical height: 52 mm (2.05")
Physical width: 260 mm (10.23")
Physical depth: 180 mm (7.09")
Weight: 2.79 kg (6.15 lbs)
Housing material: All-aluminium, powder-coated chassis with sealed security cover
Protection: Advanced rollback thermal protection circuit
Warranty: 2 years
